Waterproof processing is supported. A fixture IP grade has not yet been confirmed.





Waterproof processing is supported. A fixture IP grade has not yet been confirmed.
The confirmed fixture weight is 7 kg.
The confirmed structure uses 6063 aluminium.
This value describes the complete fixture photon efficacy.
The earlier published product information describes onboard dimming. Confirm external control compatibility for the quoted configuration.
The earlier published product information describes a foldable fixture. Confirm mounting clearance and installation details.
| Specification | Parameter confirmed on 5 October 2026 |
|---|---|
| Model | GLOC720 |
| Input power | 720 W |
| Input voltage | 200–277 V AC |
| Light source | Samsung LM281B + Sanan |
| Driver | Built-in waterproof constant-current driver |
| Driver certification | CE/RoHS (driver only) |
| Spectrum | Full spectrum |
| Fixture efficacy | 2.6 μmol/J |
| PPF | 1872 μmol/s |
| Waterproof processing | Supported |
| Fixture IP grade | Fixture IP grade not yet confirmed |
| Dimensions (L × W × H) | 1050 L × 1085 W × 42 H mm |
| Operating temperature | −20 to 40 °C |
| Weight | 7 kg |
| Structure | 6063 aluminium alloy |
Parameters confirmed on 5 October 2026 are used here. Driver CE/RoHS certification is a driver-level statement. A fixture IP grade, packing details, PPFD map and test conditions, mounting drawing, external controller compatibility, complete-fixture certification and model-specific warranty remain unconfirmed. No approved specification PDF or PPFD report has been supplied with this parameter table.
Earlier published product information lists 2,544 LEDs (2,256 white LEDs at 4000 K + 288 red LEDs at 660 nm), 0-100% onboard dimming and 94.7% optical efficiency. These older published details are separate from the confirmed parameter table. The earlier IP65 claim is not carried forward as a confirmed IP grade.
Confirmed fixture dimensions: 1050 L × 1085 W × 42 H mm. A mounting drawing and required clearance have not yet been supplied.
The earlier published image shows the fixture and accessories. The exact cables, hangers, accessory quantities and packing dimensions remain to be confirmed for the quoted configuration.

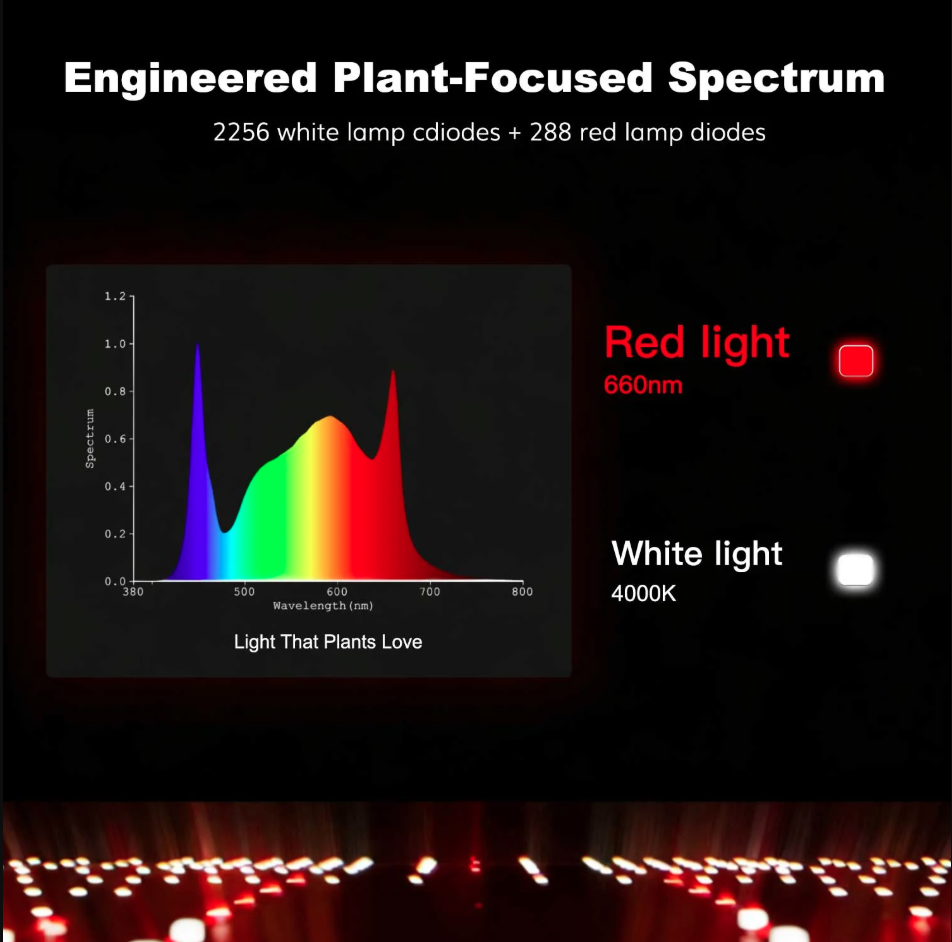

The confirmed spectrum is full spectrum and fixture PPF is 1872 μmol/s. PPF is total photon output; it does not establish canopy PPFD. This image is the earlier published spectrum visual. A PPFD map and its test conditions have not yet been supplied. Share canopy dimensions and mounting height when discussing the applicable measurement or lighting layout.
Discuss PPFD data requirements

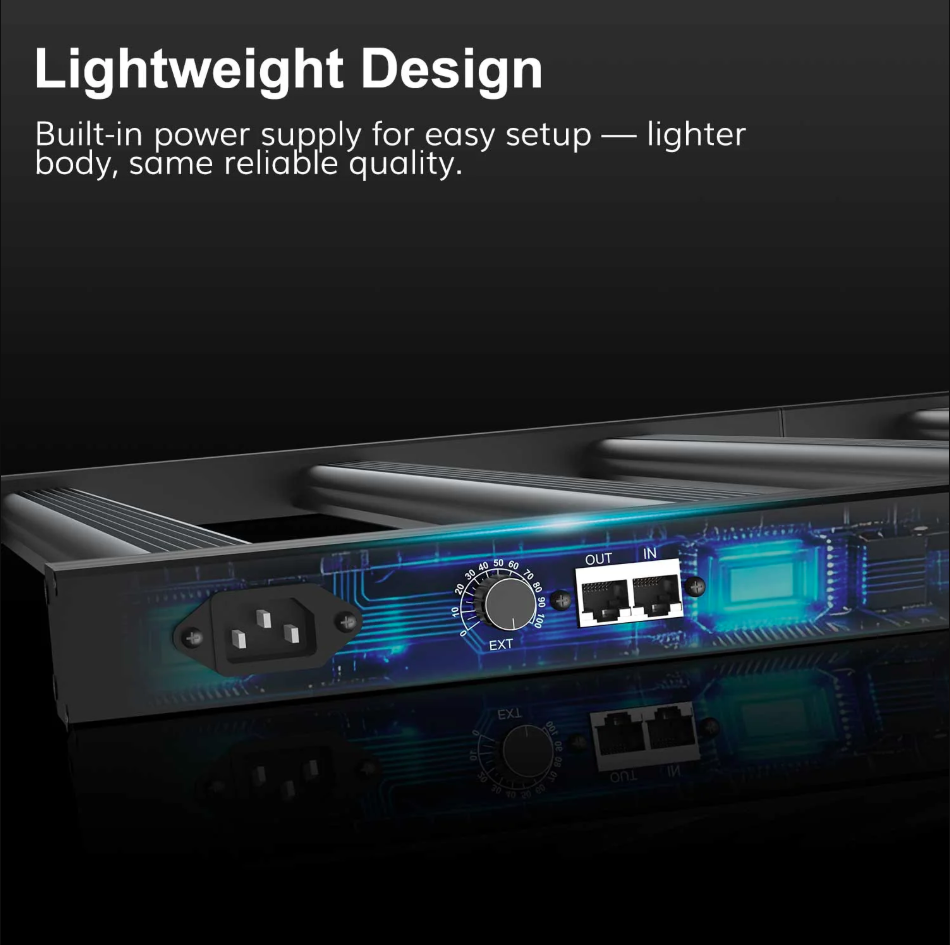

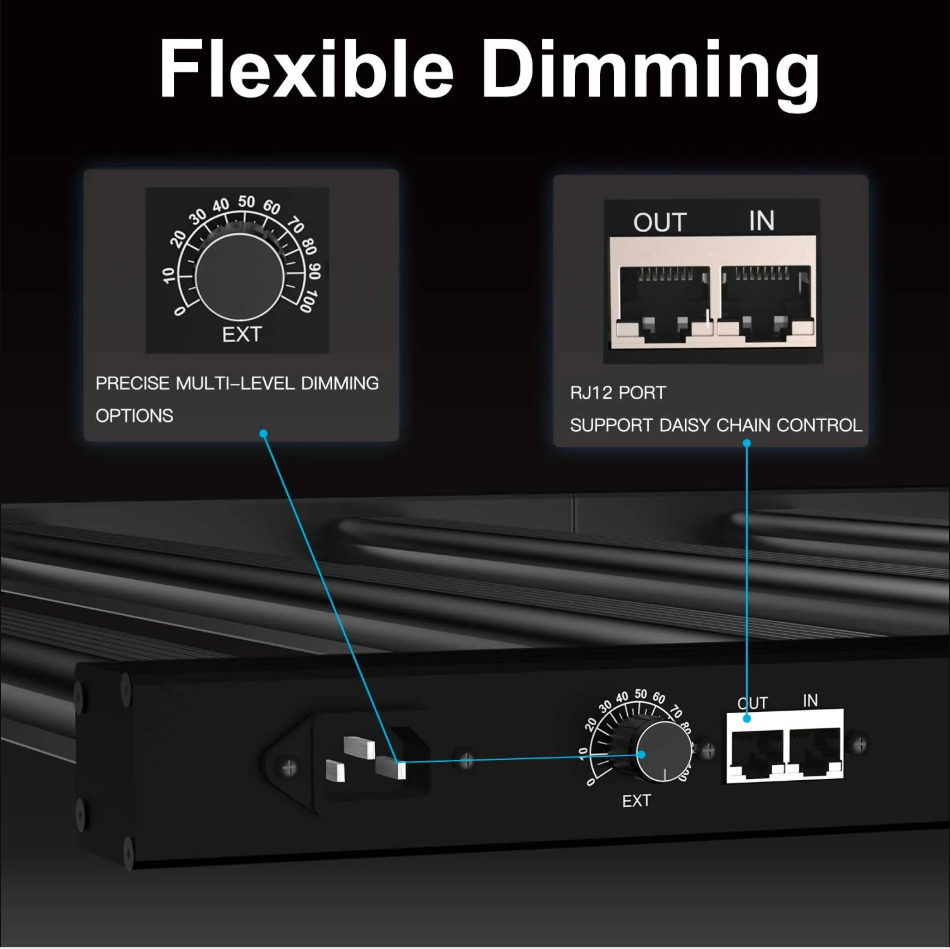

The earlier published product information describes 0-100% onboard dimming. The product image shows RJ12 IN and OUT ports with daisy-chain control support. External controller compatibility, cable requirements and wiring remain to be confirmed for the exact project configuration.
