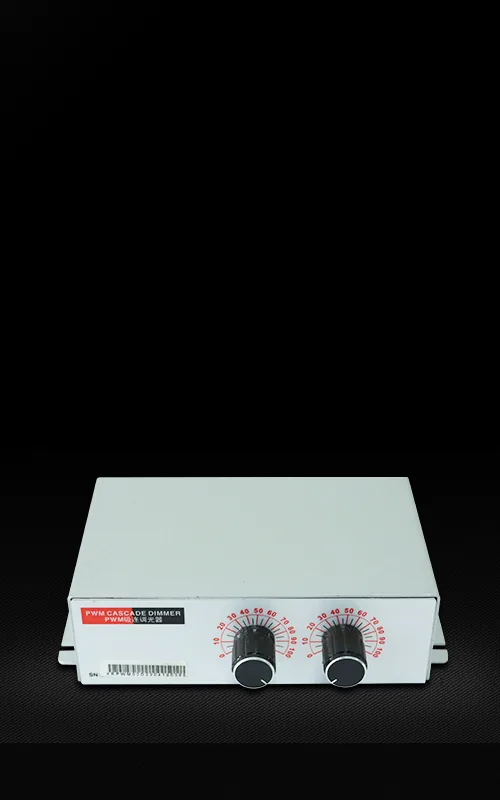

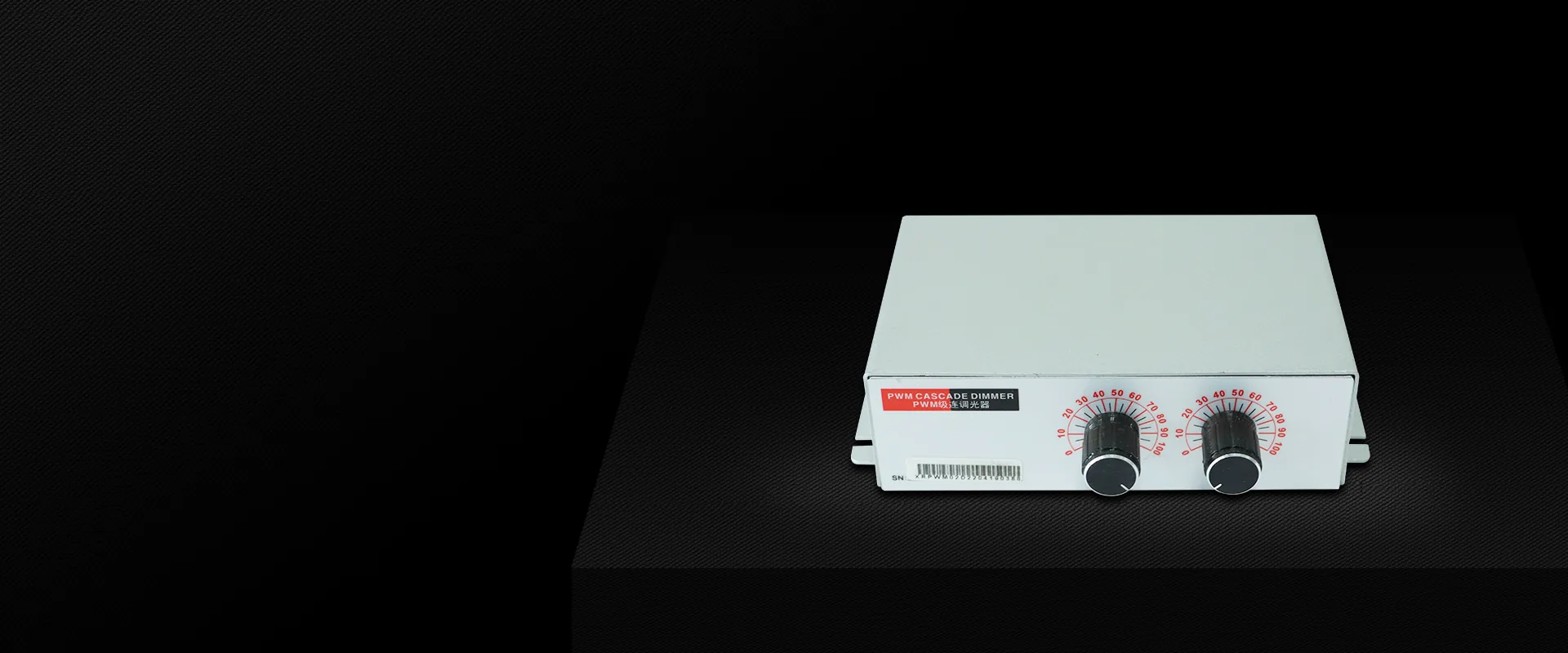

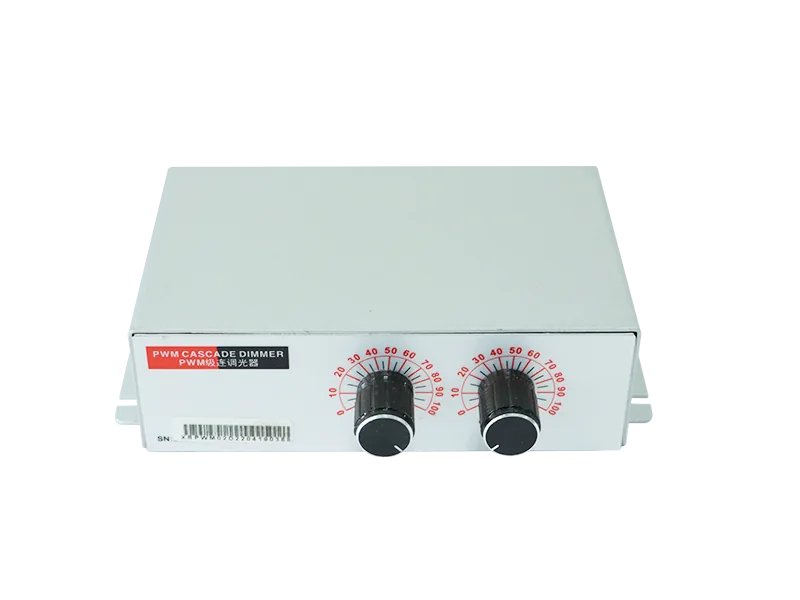

VQ-SV2B1 2-channel dimming slave controller

VQ-SK2B1 Dimming Slave Controller is a 2-channel wired knob dimmer, which can achieve infinite cascade operation with the host computer. The simple design and simple operation ensure that you can control the plant growth lights easily and conveniently.
VQ-SV2B1 2-channel dimming slave controller
VQ-SV2B1 2-channel dimming slave controller

2-channel dimming

precise lighting

Dimming function

continuous gears

Unlimited cascade

unlimited number

Easy operation

knob operation

Cooperate with the host

work together

Ease of use

easy to get started

Product Details

Products Function
Technical Specifications
Product Connection Diagram
Products Function

VQ-SV2B1 2-channel dimming slave controller

1.PWM dimming: continuous level dimming.

2. Unlimited cascading: Break the limit on the number of connections.

3. Simple operation: turn the knob to control the light easily.

4. 2-channel independent dimming.


Technical Specifications

Technical Specifications

Input:

12V-200mA DC

Output signal:

PWM

Output channels:

1-4 channels (optional)

Signal output interface:

RJ45+2.54*3

Product dimensions:

122.6mm*77mm*38mm

Number of cascades:

unlimited

Signal input:

0-10V-PWM-resistor

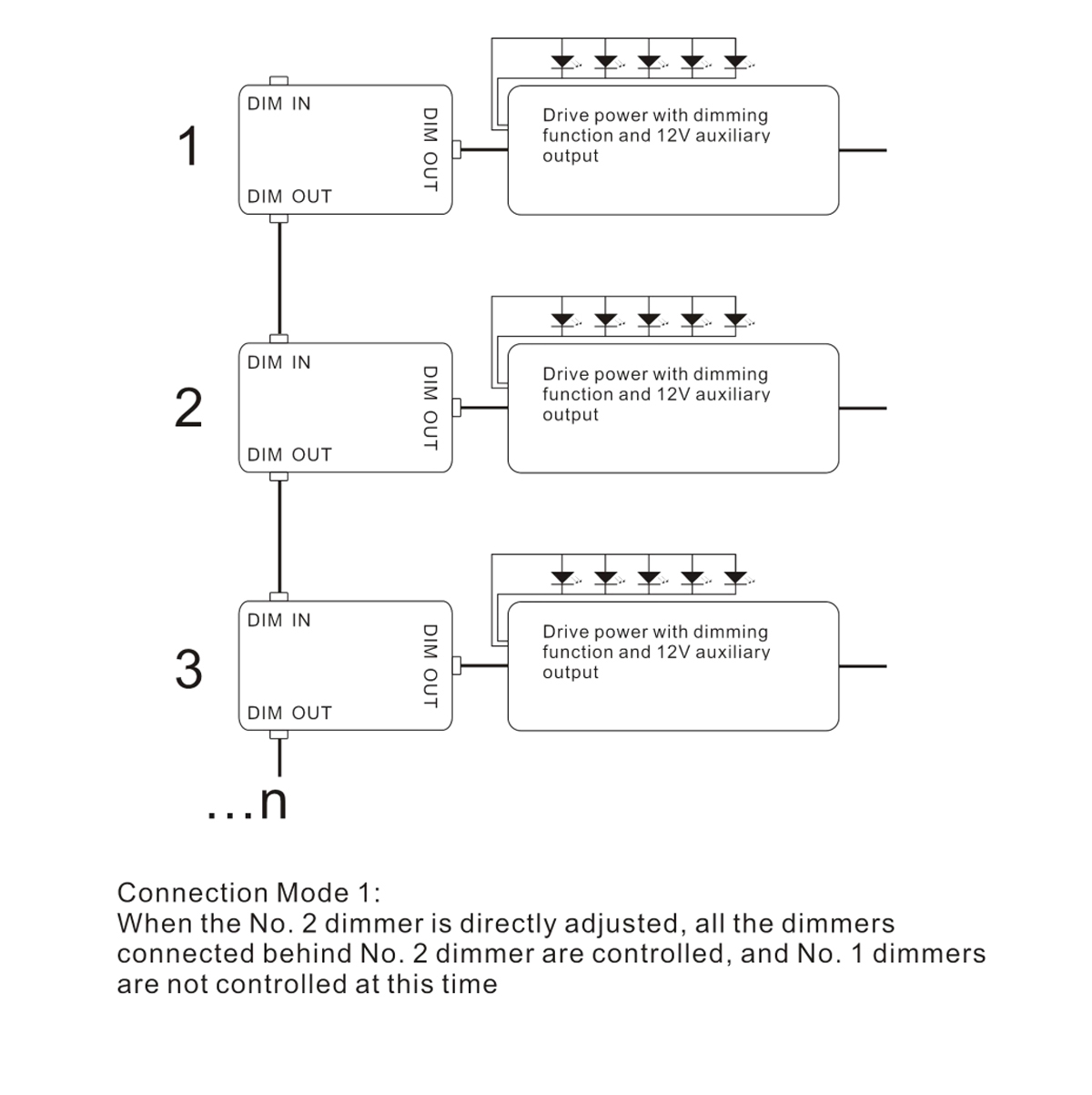

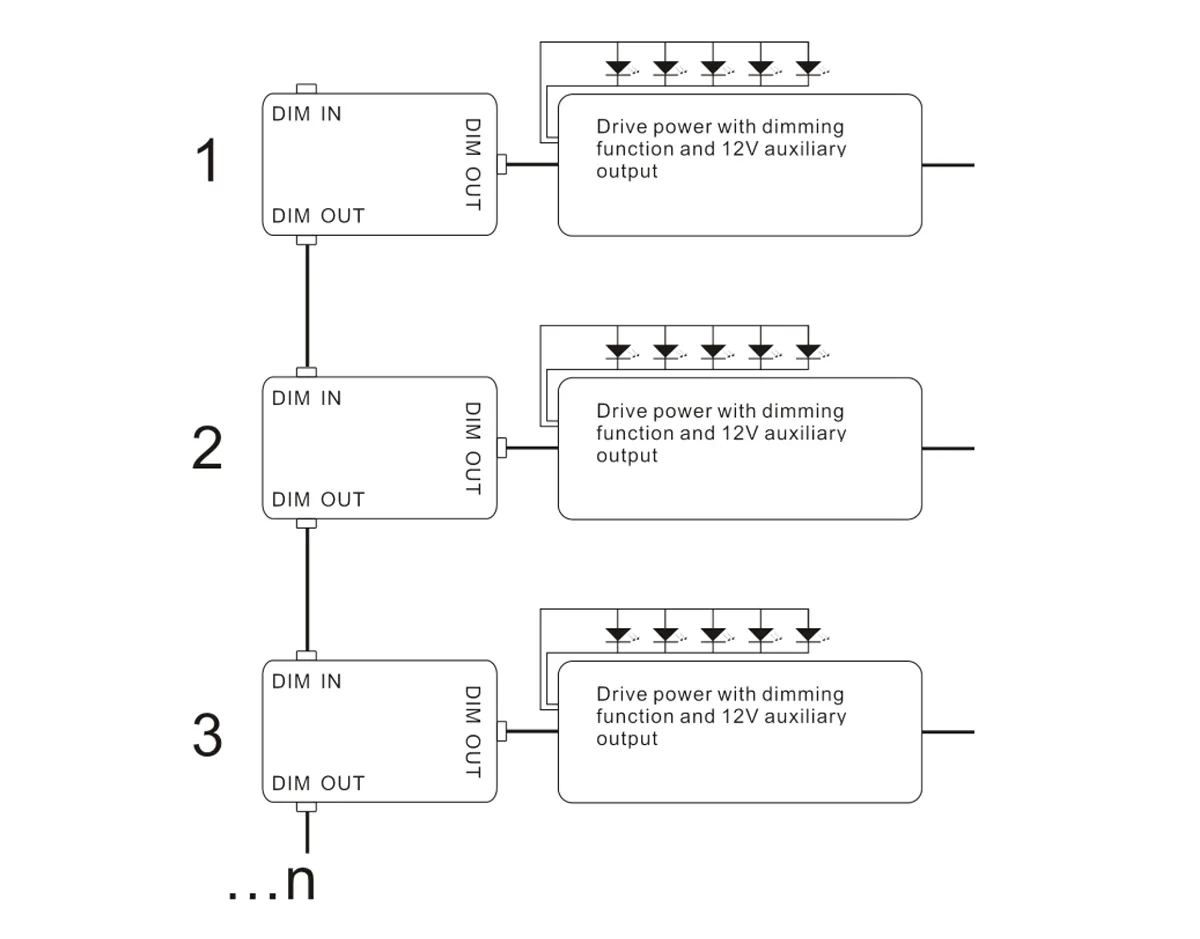

Product Connection Diagram

Product Connection Diagram

Connection Mode :

When the No. 2 dimmer is directly adjusted, all the dimmers connected behind No.2 dimmer are controlled, and No.1 dimmers are not controlled at this time
