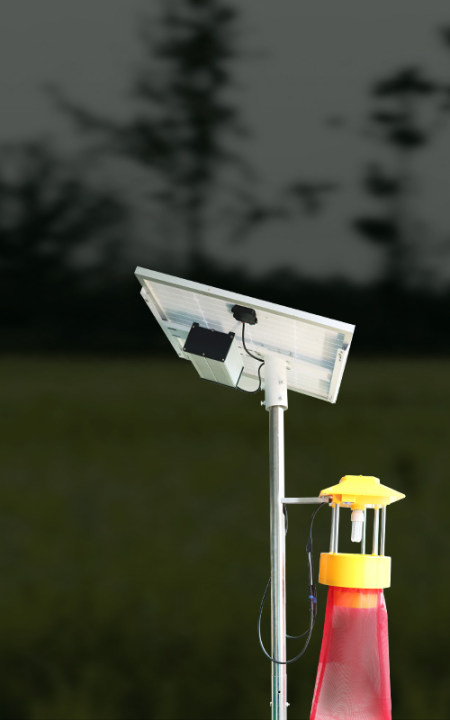

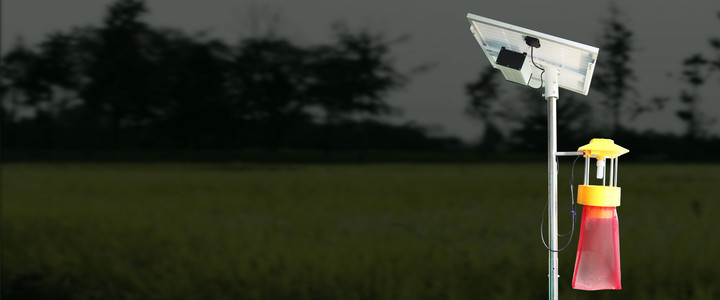

Wind Type Insecticidal Lamp Solar Model

The solar version of the wind type insecticidal lamp is an efficient and environmentally friendly farmland pest management tool. It uses light-sensing control technology to achieve intelligent switching between day and night. And it uses 365nm+395nm multi-spectrum to effectively trap various pests. Equipped with high power to enhance fluke efficiency. Monocrystalline solar panels ensure high energy conversion, reduce pesticide residues, and improve crop quality. The LED indicator light displays the working status in real time, and the combination of 25AH lithium battery and 50W photovoltaic panel ensures a battery life of up to 26 hours, easily coping with continuous rain.
Wind Type Insecticidal Lamp Solar Model
Wind Type Insecticidal Lamp Solar Model
Wind Type Insecticidal Lamp Solar Model
Wind Type Insecticidal Lamp Solar Model
Wind Type Insecticidal Lamp Solar Model

Light sensor switch

Automatic lighting at night time

365+395nm light source

Trapping various pests

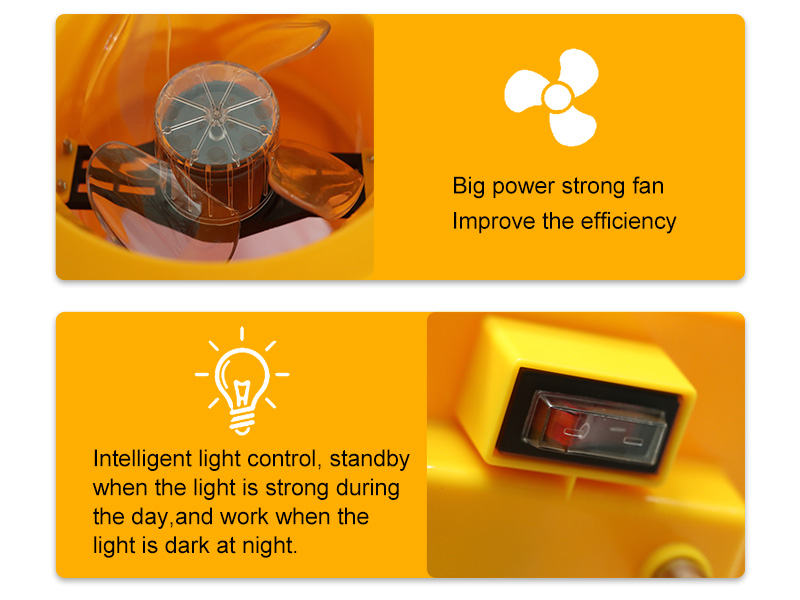

High power fan

Outstanding efficiency

Pesticide-free

Better quality and yield

High efficiency

2.1 times trapping effect

26 hours standby time

25Ah Li-battery & 50W photovoltaic panel

Product Details

Download Brochure
Product advantage
Specification Parameter
Product Size&List
Application scenarios
Wavelength
Product advantage

Advantages of VQ-IKLT-015ES Insecticidal Lamp


Light sensing control:

The device is on standby during the day and automatically starts at night to realize the sunlight intensity control working mode.


Multi-spectral trapping:

Using 365nm+395nm wavelength, it can trap multiple types of pests at the same time.

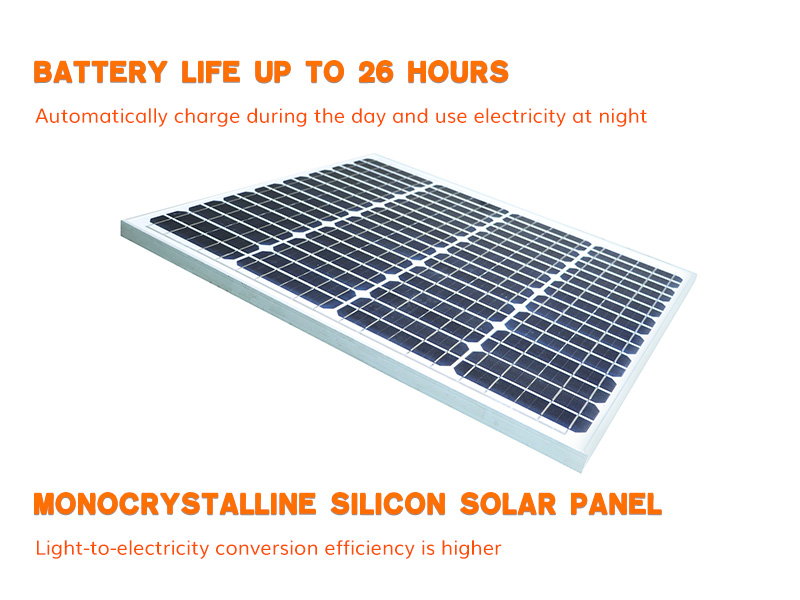

Efficient energy:

Using monocrystalline solar panels, the conversion rate is high and environmentally friendly.


Improve quality:

Reduce pesticide residues and improve crop yield and quality.


Trapping improvement:

Not affected by the size of the insect body, the trapping effect is increased by 2.1 times.


Long-lasting battery life:

Equipped with 25AH lithium battery and 50W photovoltaic panel, the battery life is up to 26 hours, suitable for continuous rainy weather.

Specification Parameter

Specification Parameter

IP Rating:

IP55

Product Dimensions:

256L x 256W x 430H(mm)

Working Temperature:

10°C ~ 60°C | 50°F ~ 140°F

Rated Input Voltage:

12VDC

Total Power:

15w±5%

Trapping Light Source:

led light

Lamp Head Specifications:

E27

Light Source Working Voltage:

12VDC

Light Source Power:

8W

Fan Type:

waterproof fan

Fan Specifications:

15050

Number of Fans:

1PCS

Fan Power:

6W

Air Volume:

150CDF

Net Weight:

17.8kg


Product Size&List

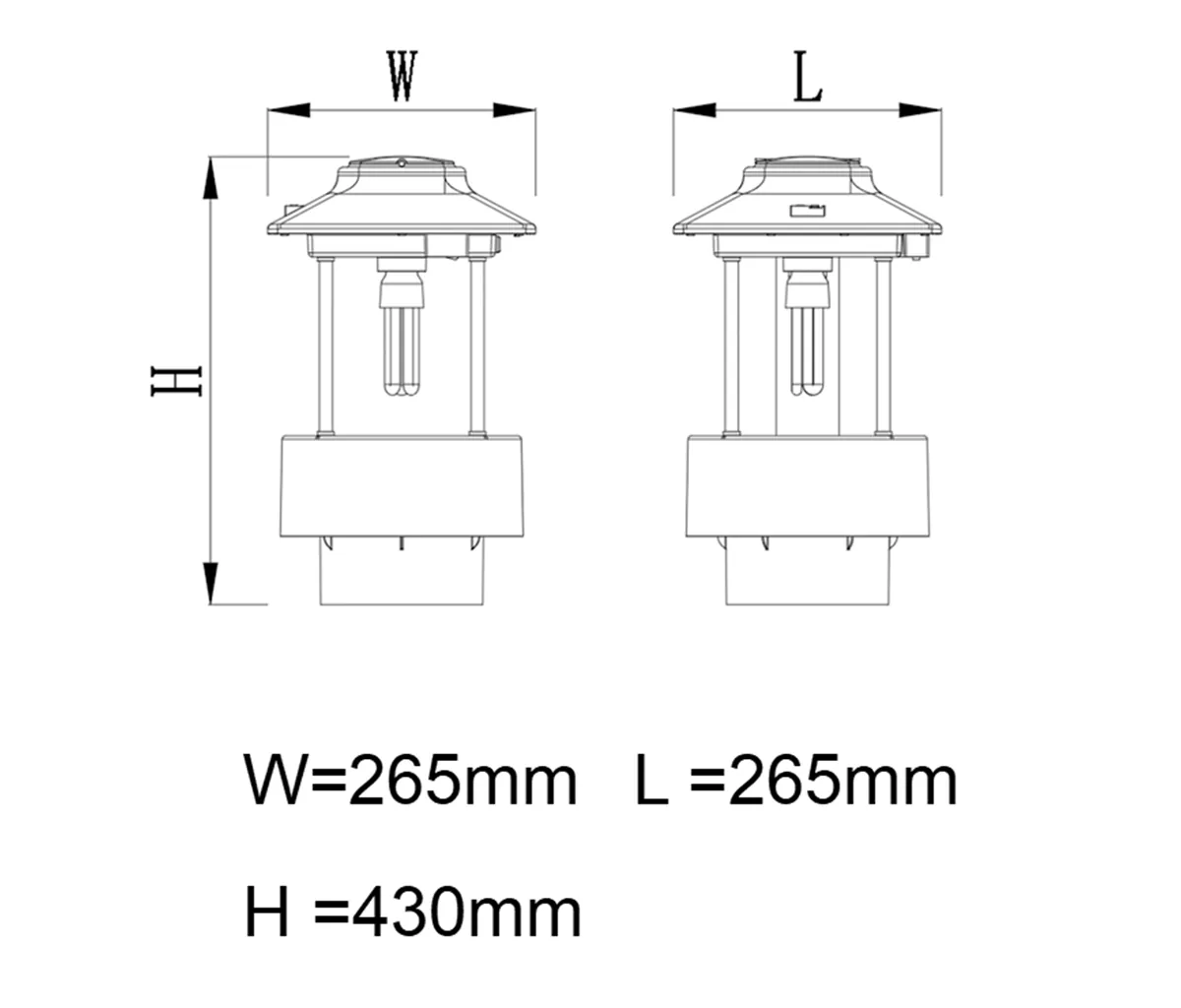

Dimensions

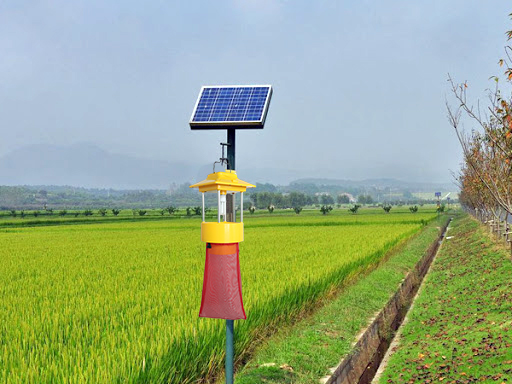

Application scenarios

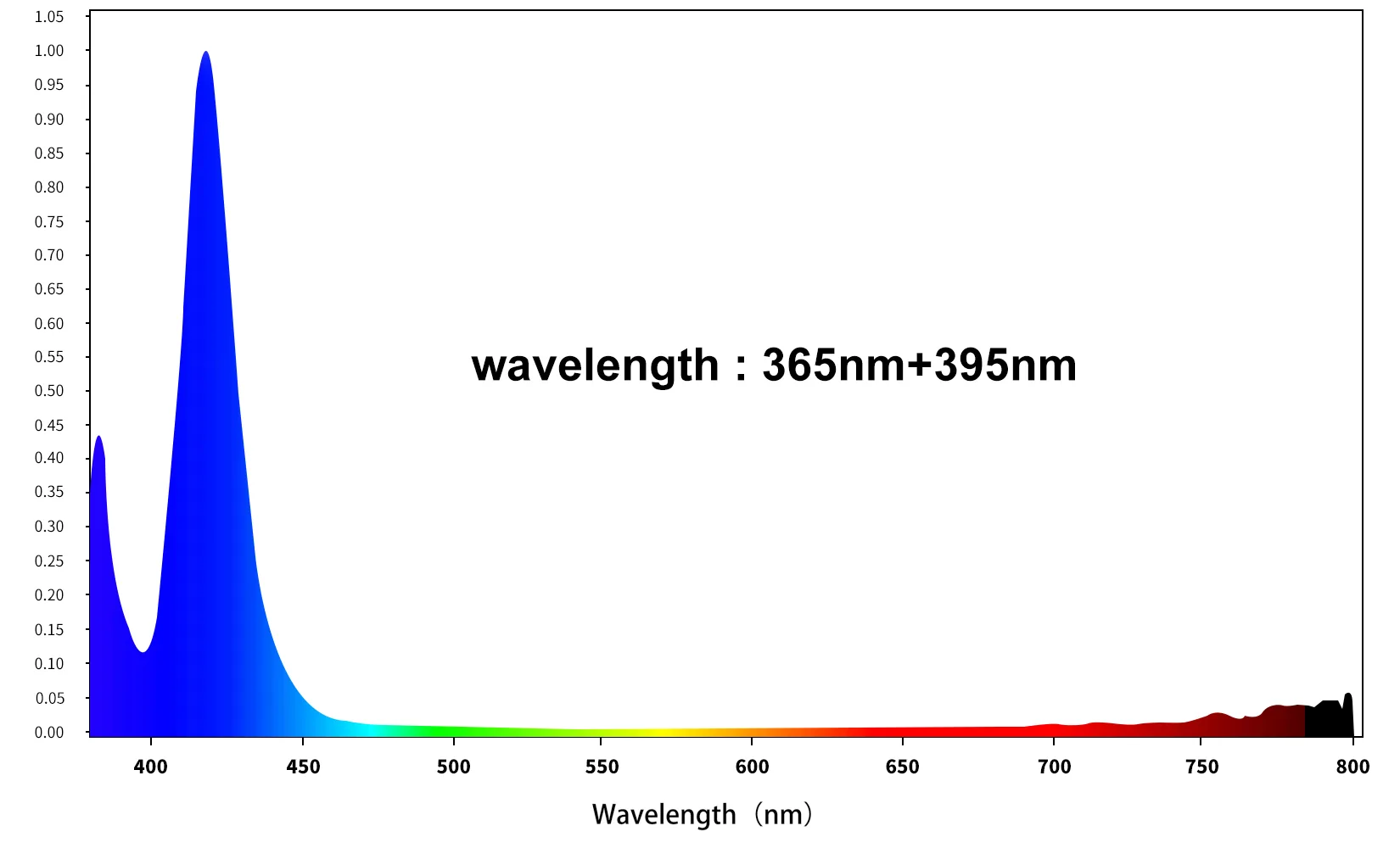

Wavelength

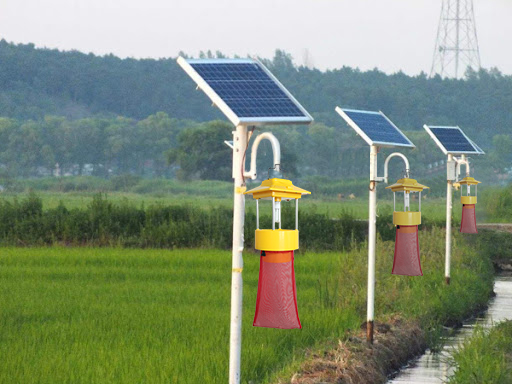

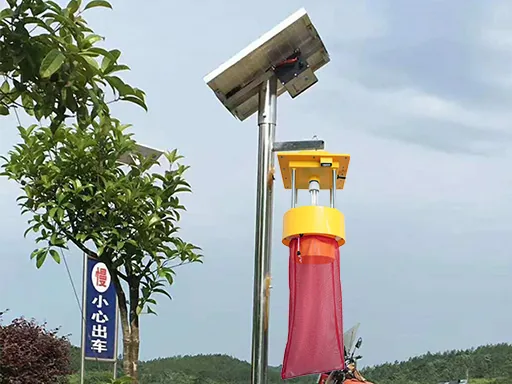

APPLICATION SCENARIO
