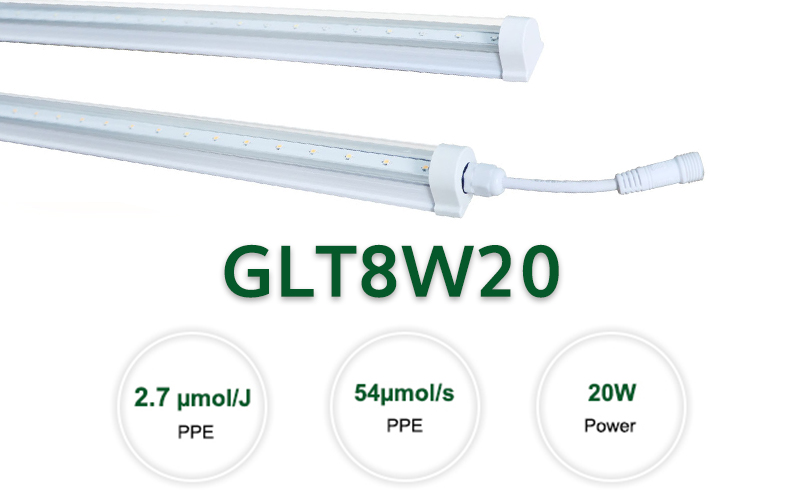

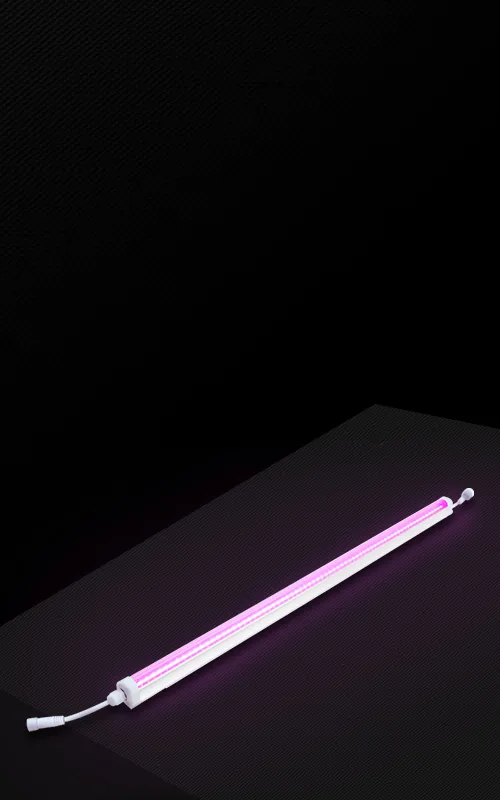

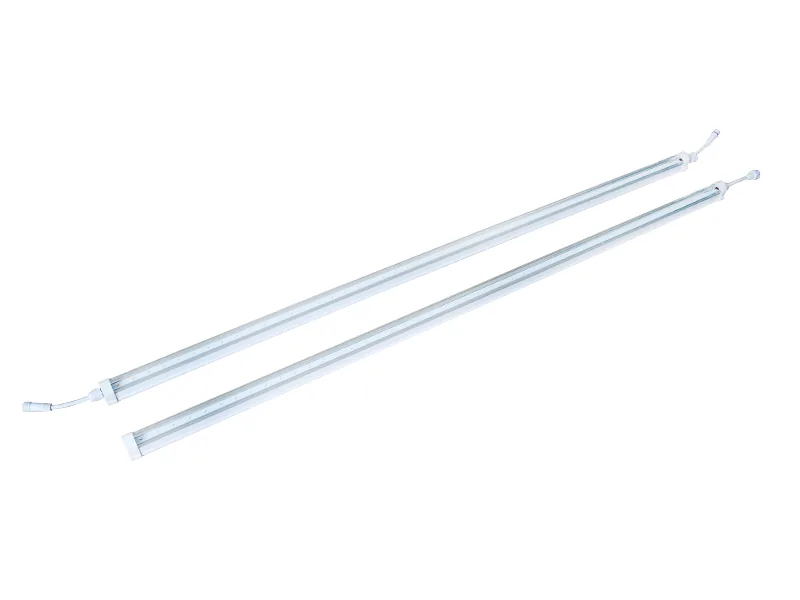

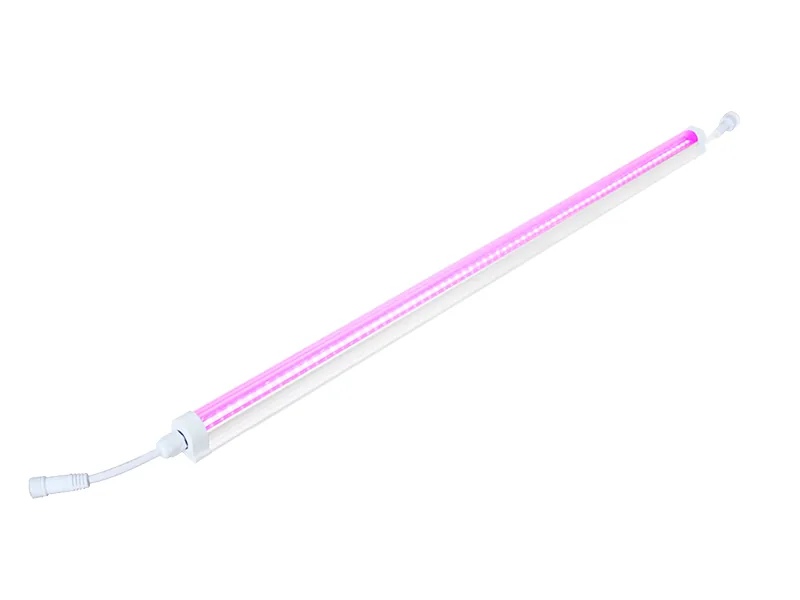

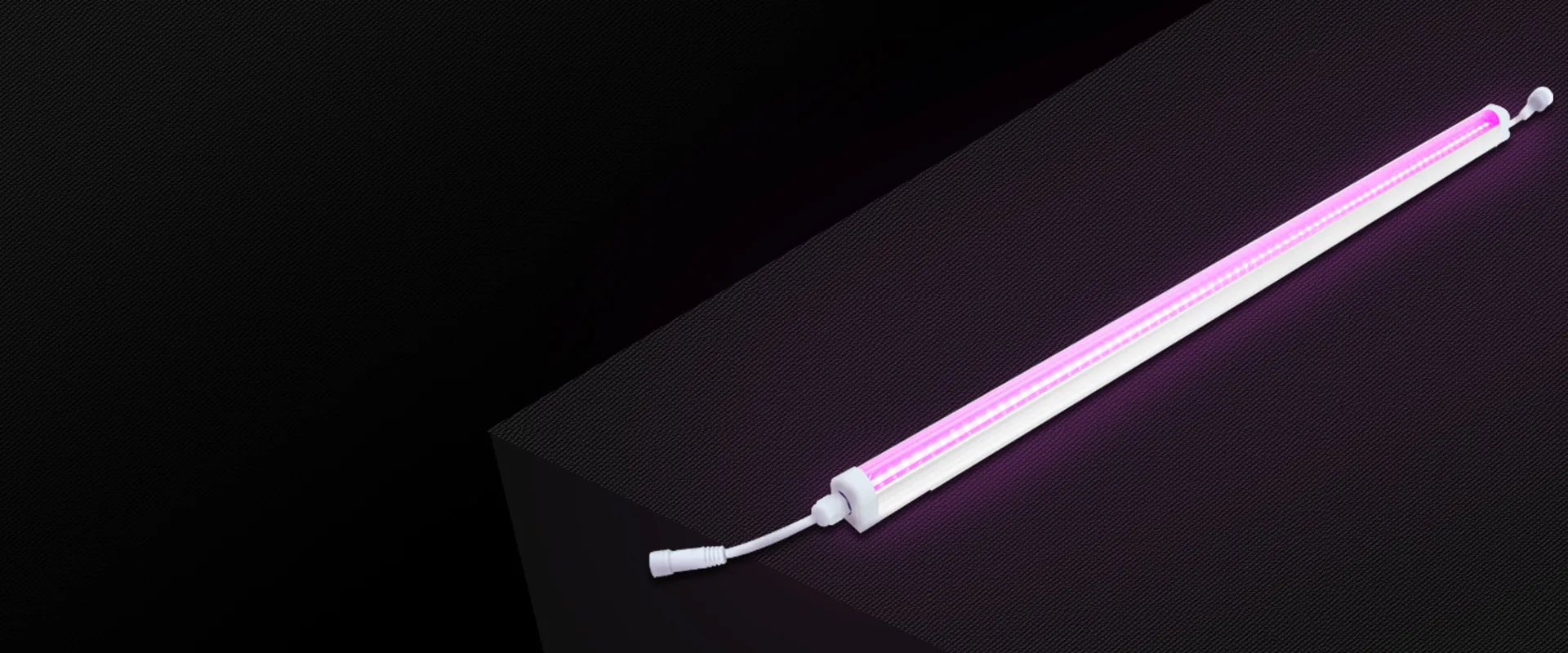

20W leafy vegetable grow light with IP65 waterproof design

20W leafy vegetable planting light, specially built for modern agriculture. The flexible installation design not only facilitates maintenance and replacement, but also allows up to 20 units to be connected in series to facilitate large-scale applications. The IP65 waterproof rating makes it adaptable to a variety of environments, and the all-plastic surface eliminates the worry of electric shock. The light is available in customized lengths to meet different planting needs, while the aluminum alloy material ensures efficient heat dissipation and extended service life.
20W leafy vegetable grow light with IP65 waterproof design
20W leafy vegetable grow light with IP65 waterproof design
20W leafy vegetable grow light with IP65 waterproof design
20W leafy vegetable grow light with IP65 waterproof design
20W leafy vegetable grow light with IP65 waterproof design
20W leafy vegetable grow light with IP65 waterproof design

Daisy Chain

Up to 20 PCS

IP65 Waterproof

Suitable for most environments.

Safe and Worry-Free

the surface is fully plastic, eliminating the risk of electric shock.

Length Customization

length can be customized according to needs

Professional Spectrum

designed specifically for growing leafy vegetables

Aluminum Alloy Material

efficient heat dissipation

Product Details

Download Brochure
Product Advantage
Specification Parameter
Installation ways
Product Size&List
PPFD&Spectrum
Luminaire Control

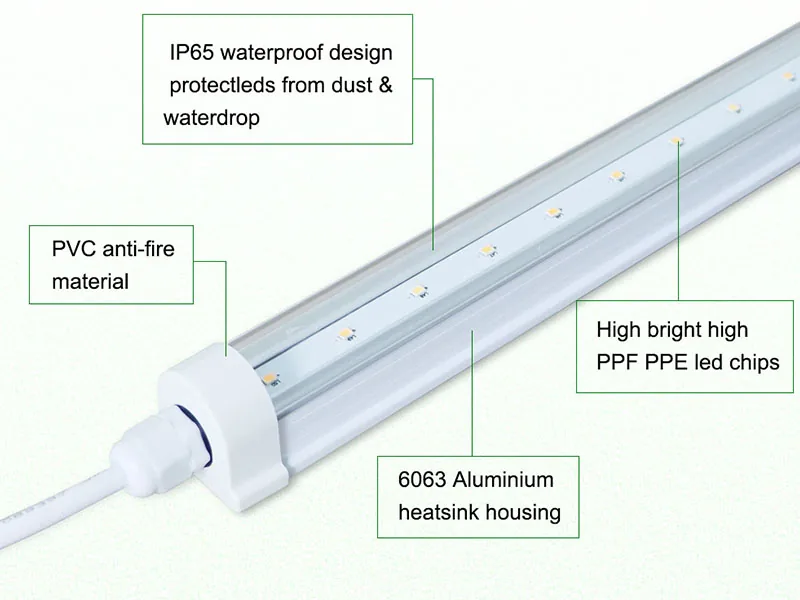

Product Advantage

Advantages of 20W leafy vegetable grow light


Efficient heat dissipation:

The aluminum alloy material ensures efficient heat dissipation, extends product life, and creates a more stable growth environment for plants.


Adaptable:

IP65 waterproof makes the light suitable for various environments and resists all kinds of weather.


Powerful scalability:

Supports series connection, allowing you to connect up to 20 devices to easily meet large-scale planting needs.


Safety first:

The surface of the light adopts an all-plastic design, which completely eliminates the risk of electric shock and makes your planting more secure.

Specification Parameter

Model

VQ-GLT8W20-VC3

VQ-GLT8W20-VC5

Light Source

SMD LED

SMD LED

Light Diodes Brand

Samsung LM301B

Samsung 281B+

Weight

320 g / 0.7 lbs

320 g / 0.7 lbs

Typical PPF

54umol/s

50umol/s

Light Diodes Ratio

white light

white light

Efficacy

2.8 umol/J

2.6umol/J

lnput Voltage

85~265VAC 50/60Hz

85~265VAC 50/60Hz

Spectrum

leafy vegetable planting spectrum

leafy vegetable planting spectrum

Input Power

20W

20W

Light Diodes Ratio

white light

white light

Dimensions

47in L x1.25in W x 1.25in D

1195mm L x 32mm W x 32mm D

47in L x1.25in W x 1.25in D

1195mm L x 32mm W x 32mm D

Working Temperature

-20℃~45C|-4℉~113°℉

-20℃~45C|-4℉~113°℉

Light Distribution

120°

120°

Daisy Chain(Max)

10pcs

10pcs

Lifetime

≥25,000 hrs

≥25,000 hrs

Dimming

Not dimmable

Not dimmable

IP Rating

IP65

IP65

Warranty

2 Years

2 Years

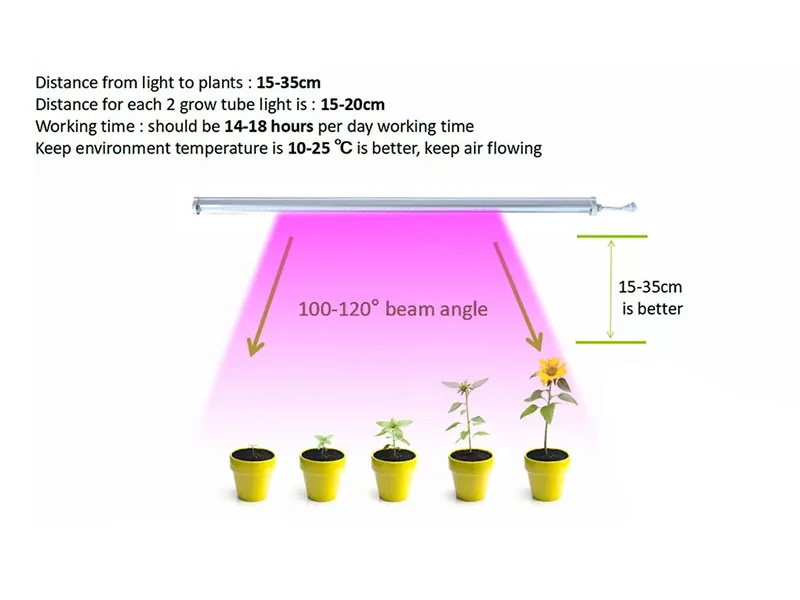

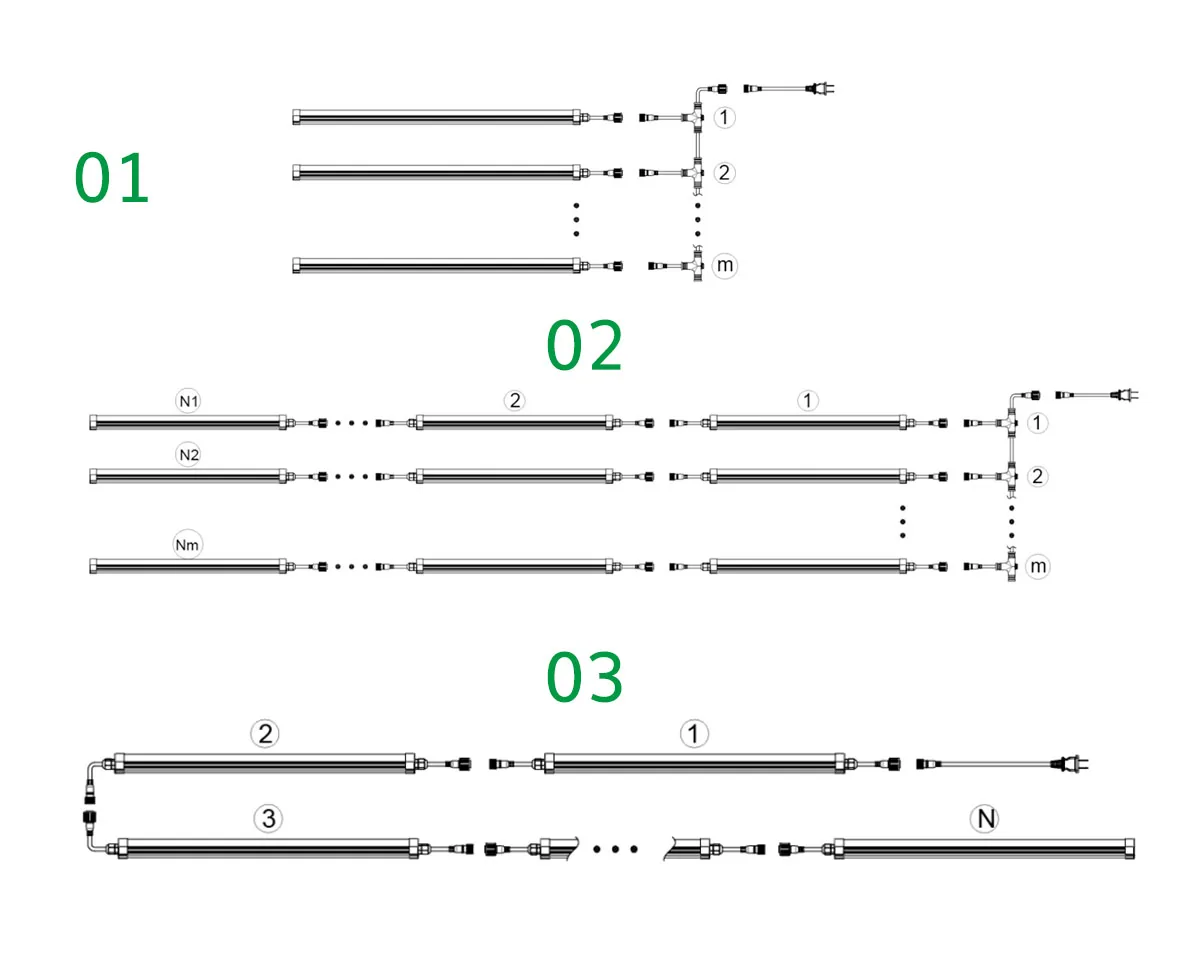

Installation ways

Installation ways


1. connecting Through T-Shaped connector in 1 column


Installation through T-Shaped connector method2,The tubes are connected in multicolumns


2. The male and female connectors between the lamps are connected, and no T-type connector is used





Product Size&List

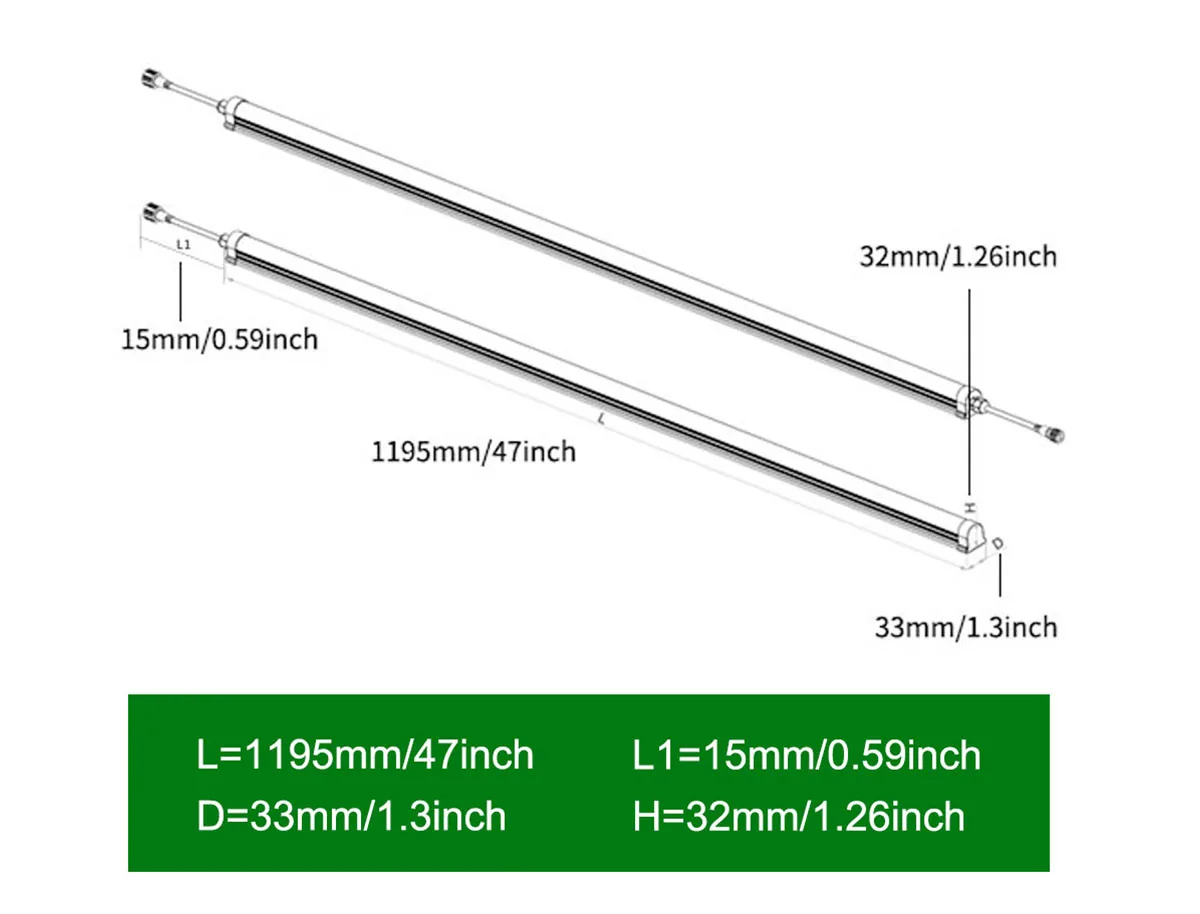

Lamp size

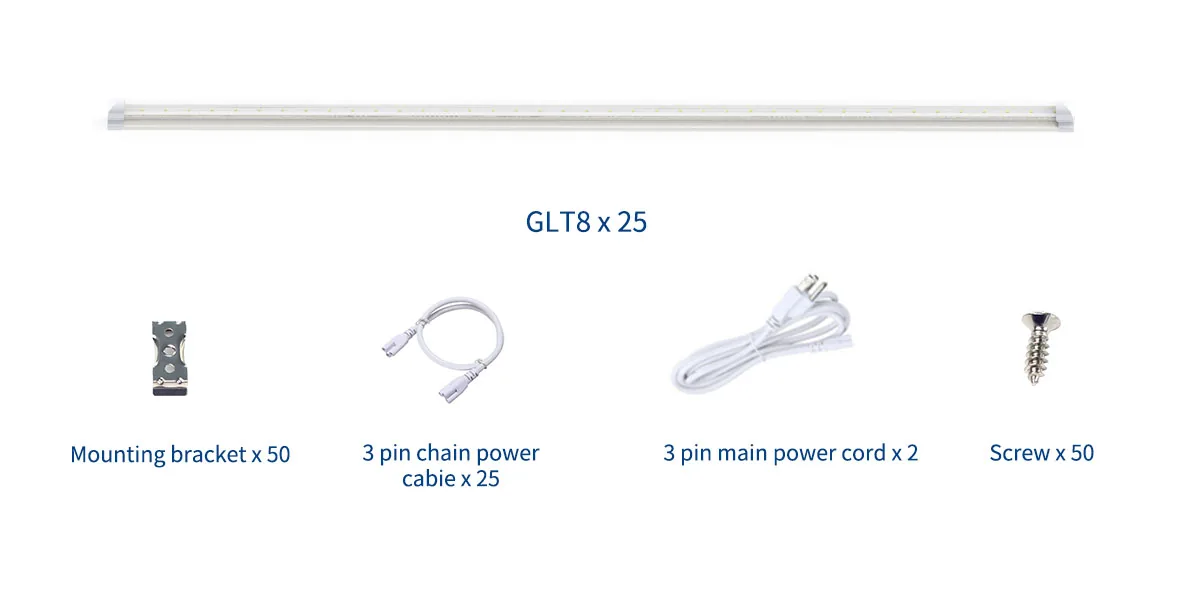

Packing List



Packing Details



Net Weight:7.8kg | 17.2lbs
Packaging:25 pcs/carton
Gross Weight:10kg | 22 lbs
Size:

142cm L x 25.5cm W x 26cm H

56inch L x 10inch W x 10.2inch H

Packaging Material:Plastic + Foam + Carton




PPFD&Spectrum

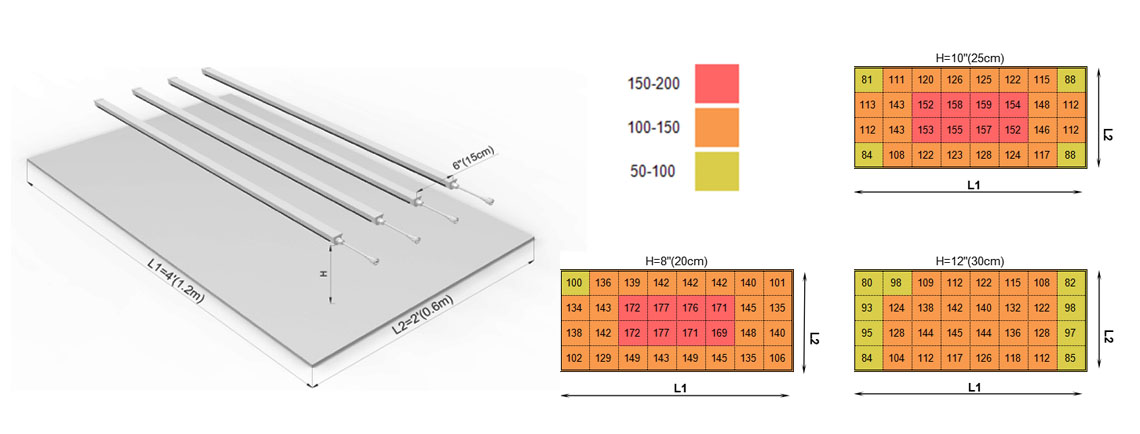

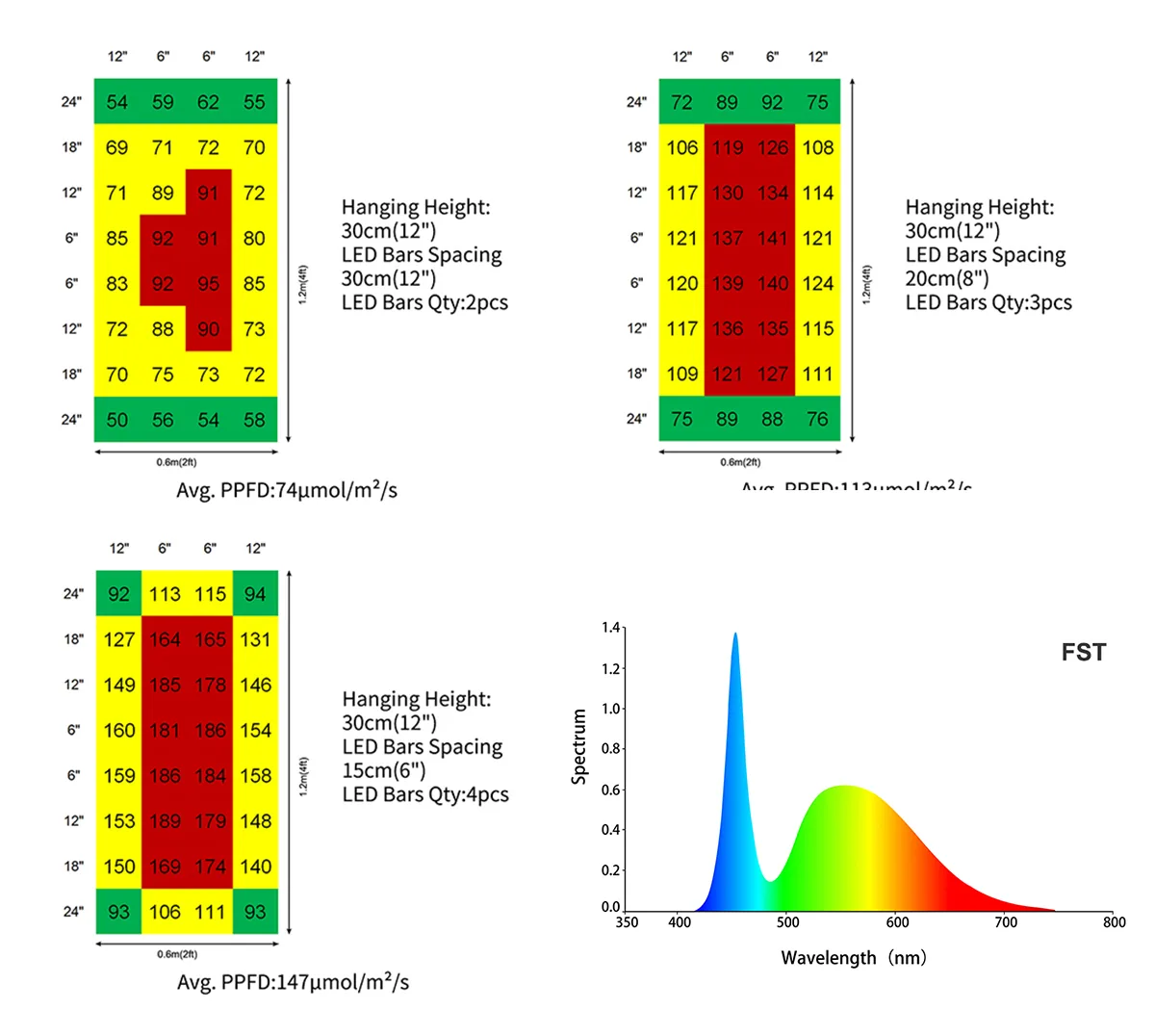

PPFD Distribution

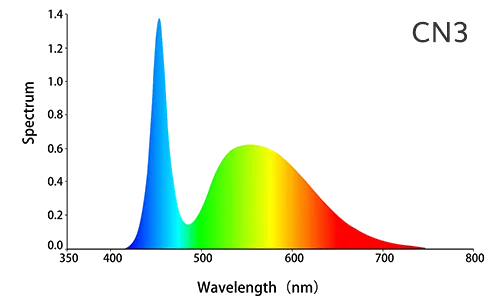

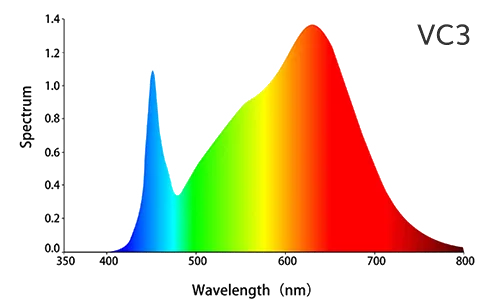

Light spectrums



CN3 is a tailor-made heavy b lue spectrum with a

continuous spectral emission across PAR 400

- 700nm wavelength range.




VC3 spectrum focuses on vegetative growth phases and propagation.


Allow to customize different light spectrums for application


Luminaire Control

Luminaire Control


Up to 20pcs 20W leafy vegetable grow light can be powered in a daisy chain connection way.


Product Category

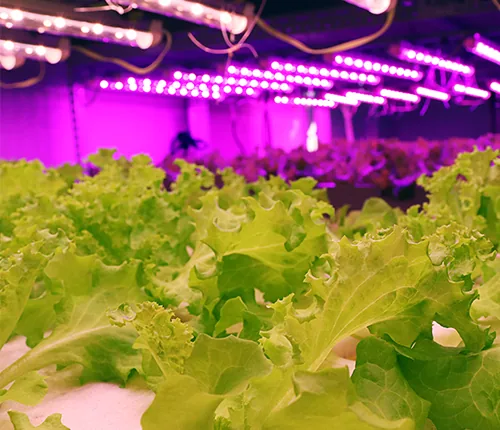

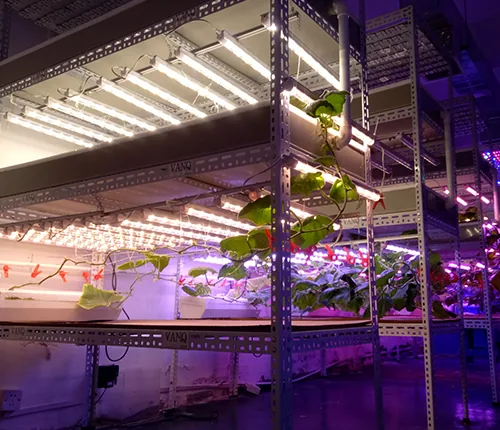

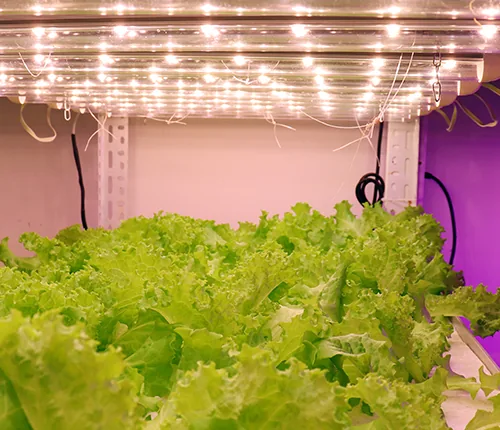

APPLICATION SCENARIO
