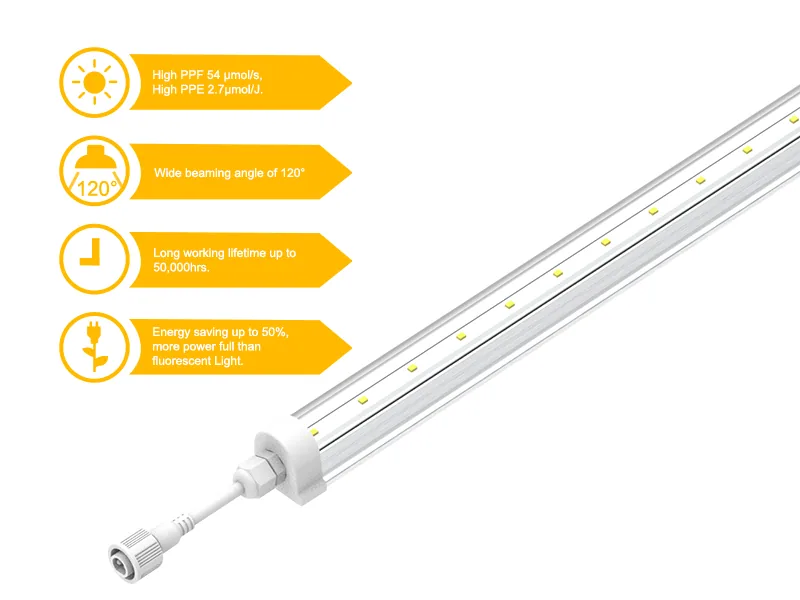

20W seedling grow light i65 waterproof design

The 20W seedling light provides comprehensive support for your planting. Its unique cascading feature allows you to connect up to 20 devices to meet large-scale planting needs. The high waterproof rating of IP65 allows it to work stably in a variety of environments, while the plastic exterior design ensures a safe touch during use. You can also customize the fixture length and spectrum to your specific needs for optimal plant growth. Coupled with the excellent heat dissipation performance of aluminum alloy, it ensures the long-lasting stability and high energy efficiency of the product.
20W seedling grow light i65 waterproof design
20W seedling grow light i65 waterproof design
20W seedling grow light i65 waterproof design
20W seedling grow light i65 waterproof design
20W seedling grow light i65 waterproof design

Series connection function

up to 20 devices can be connected

Waterproof characteristics

IP65 rating widely used in various environments

Safe to touch

Plastic exterior eliminates the possibility of electric shock

Flexible length

can be customized according to customer needs

Personalized spectrum

specially designed for seedling planting

Excellent heat dissipation

Aluminum alloy construction ensures superior heat dissipation performance.

Product Details

Download Brochure
Product Advantage
Specification Parameter
Installation ways
Product Size&List
PPFD&Spectrum
Luminaire Control
Product Advantage

Advantages of 20W seedling light

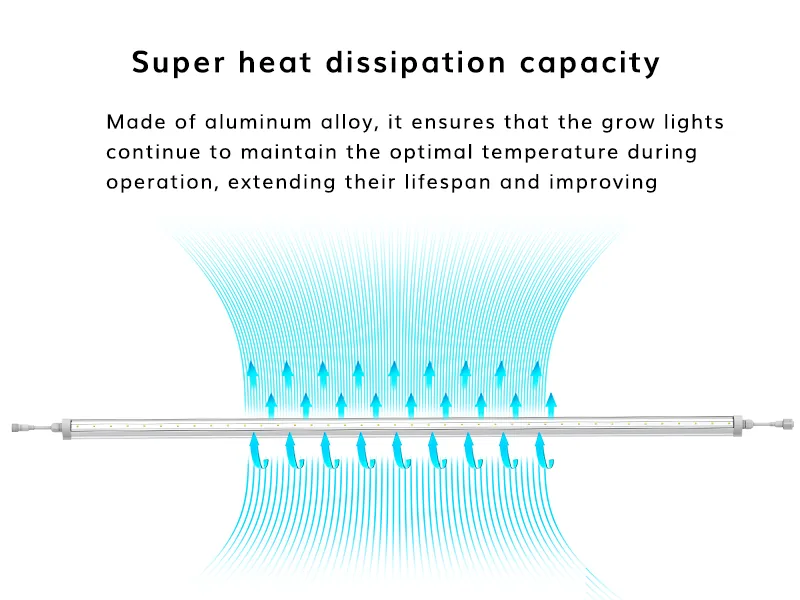

Super heat dissipation capacity:

Made of aluminum alloy, it ensures that the grow lights continue to maintain the optimal temperature during operation, extending their lifespan and improving efficiency.


Series connection:

Up to 20 devices can be connected, bringing convenience to large-scale planting projects and providing uniform lighting for the entire planting area.

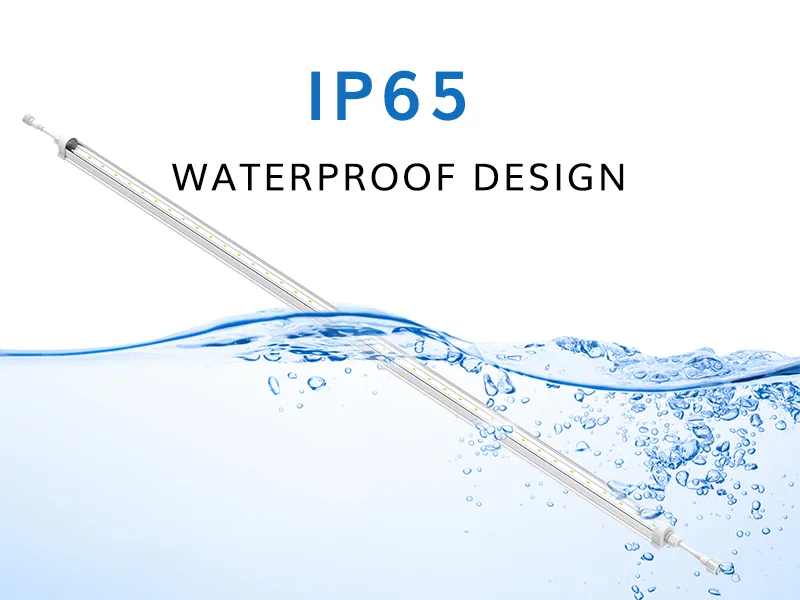

IP65 waterproof design:

The interior of the entire light and driver box adopts a waterproof design. The waterproof capability allows the entire light to be used in humid and dripping environments, making planting more worry-free.


customizable :

To meet specific needs, there are personalized lighting options available that can be designed exactly to your needs.


Specification Parameter

Model

VQ-GLT8W20-VN3

VQ-GLT8W20-VN5

Light Source

SMD LED

SMD LED

Light Diodes Brand

Domestic high-efficiency Light diodes

Samsung 281B+

Weight

320 g / 0.7 lbs

320 g / 0.7 lbs

Typical PPF

41umol/s

43umol/s

Light Diodes Ratio

red light and blue light

red light and blue light

Efficacy

2.8 umol/J

2.6umol/J

lnput Voltage

 85~265VAC 50/60Hz

 85~265VAC 50/60Hz

Spectrum

seedling spectrum

seedling spectrum

Input Power

20W

20W

Dimensions

47in L x1.25in W x 1.25in D

1195mm L x 32mm W x 32mm D

47in L x1.25in W x 1.25in D

1195mm L x 32mm W x 32mm D

Working Temperature

-20℃~45C|-4℉~113°℉

-20℃~45C|-4℉~113°℉

Light Distribution

120°

120°

Lifetime

≥25,000 hrs

≥25,000 hrs

Dimming

Not dimmable

Not dimmable

IP Rating

IP65

IP65

Warranty

2 Years

2 Years



Installation ways

Installation ways


1. connecting Through T-Shaped connector in 1 column


Installation through T-Shaped connector method2,The tubes are connected in multicolumns


2. The male and female connectors between the lamps are connected, and no T-type connector is used




Product Size&List

Lamp size



Packing List



Packing Details



Net Weight:7.8kg | 17.2lbs
Packaging:25 pcs/carton
Gross Weight:10kg | 22 lbs
Size:

142cm L x 25.5cm W x 26cm H

56inch L x 10inch W x 10.2inch H

Packaging Material:Plastic + Foam + Carton


PPFD&Spectrum

PPFD & Spectrums



Luminaire Control

Luminaire Control


Up to 20pcs 20W Seedling lights can be powered in a daisy chain connection way.
