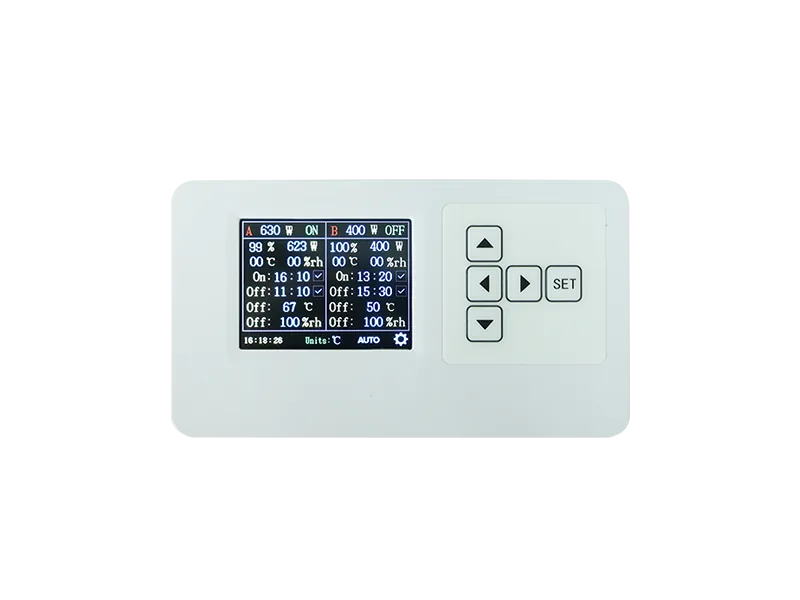

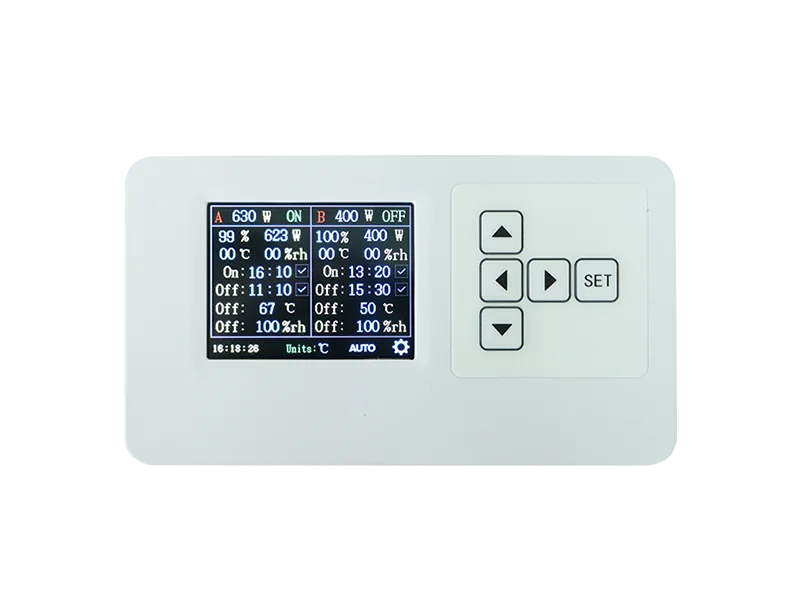

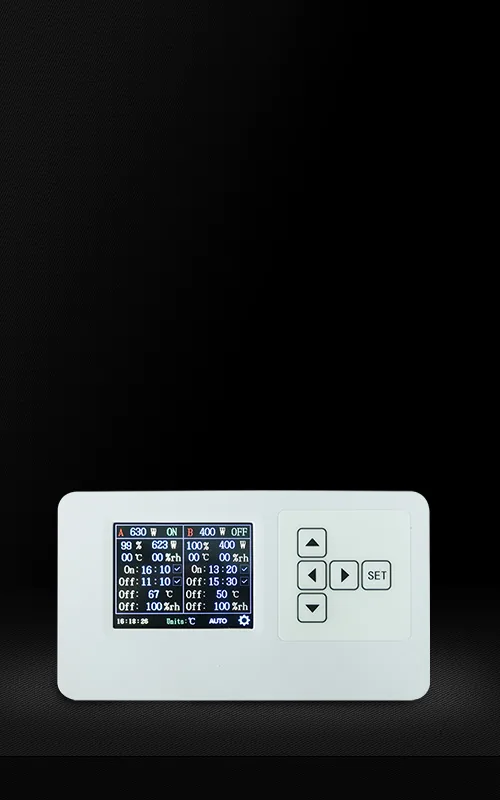

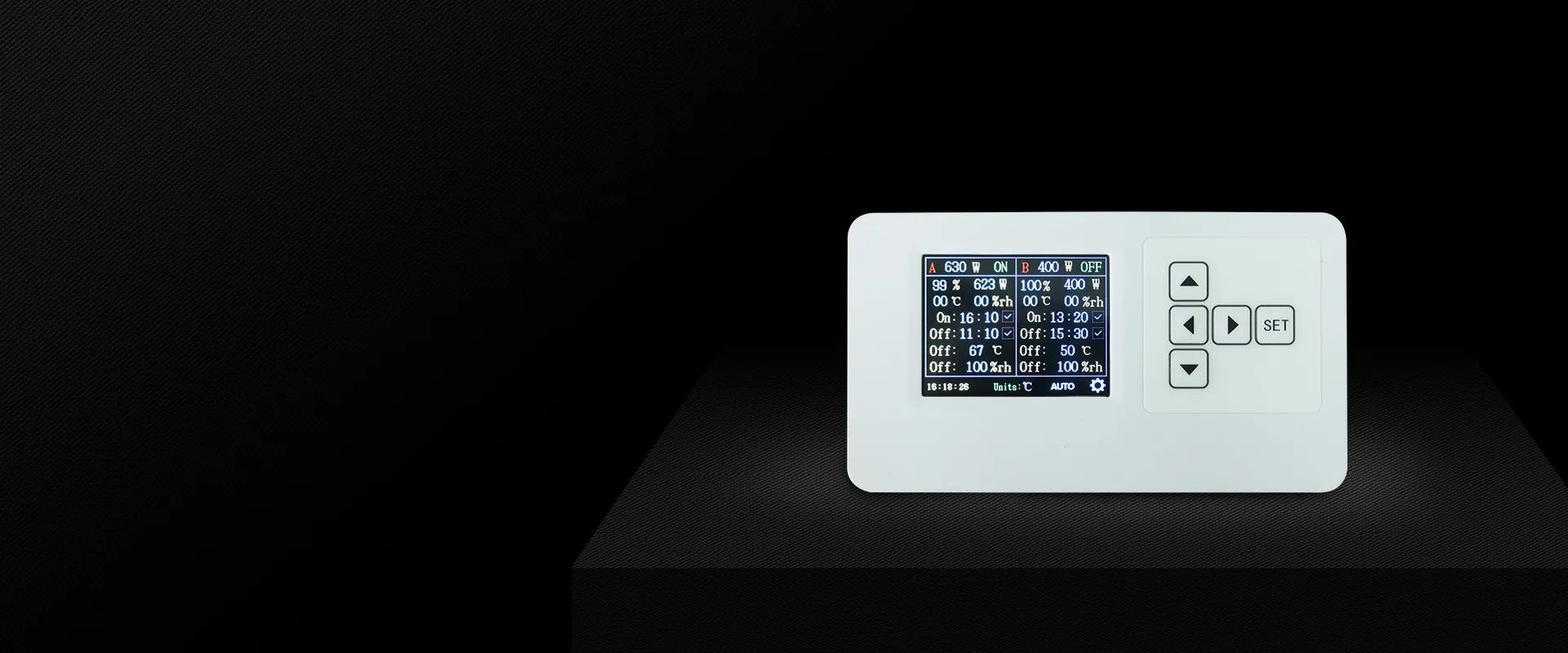

VQ-MI2820 Wireless Master Controller Function |
| 1. The interface is simple and easy to understand. |
2. Can be operated by wireless WIFI (remote)/wireless Bluetooth (local area). |
3. Equipped with temperature and humidity sensor and 2-group control switch. |
4. Two group single-channel dimming, supporting timing. |
5. Sunrise and sunset settings; |
6. The total dimming power can be set. |
7. Switchable PWM and 0-10V output signal. |
Technical Specifications | |
Input: | 5V2A DC. |
Output signal: | 0-10V signal. |
Working temperature: | 0-40℃. |
Signal output interface: | RJ14. |
Product dimensions: | 153*86*33mm. |
Single package dimension: | 260*150*110mm. |

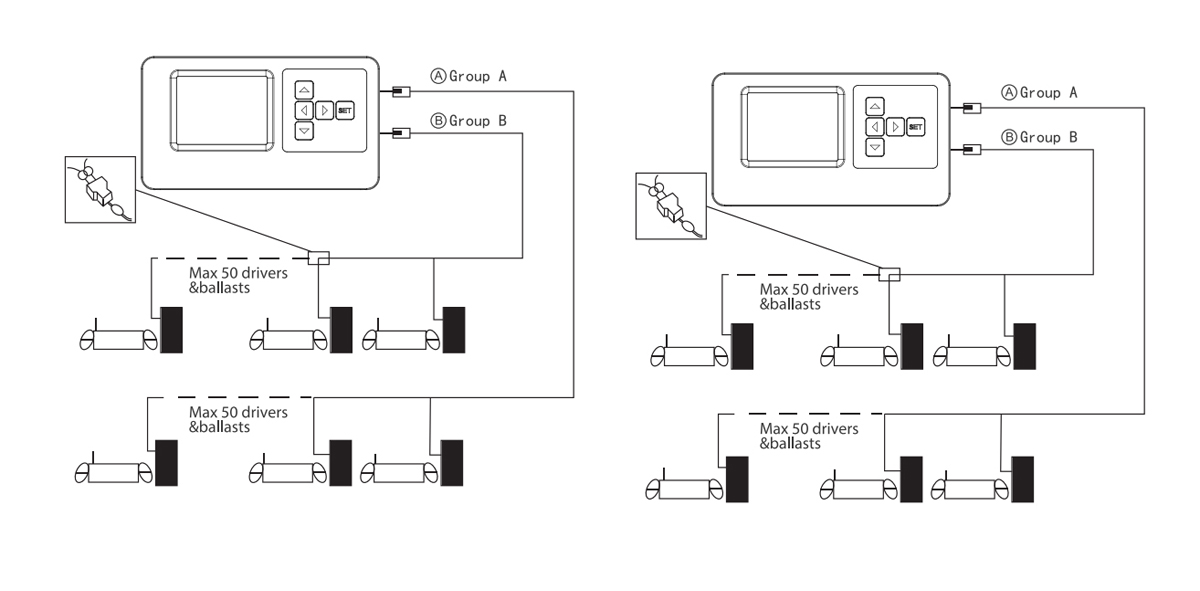

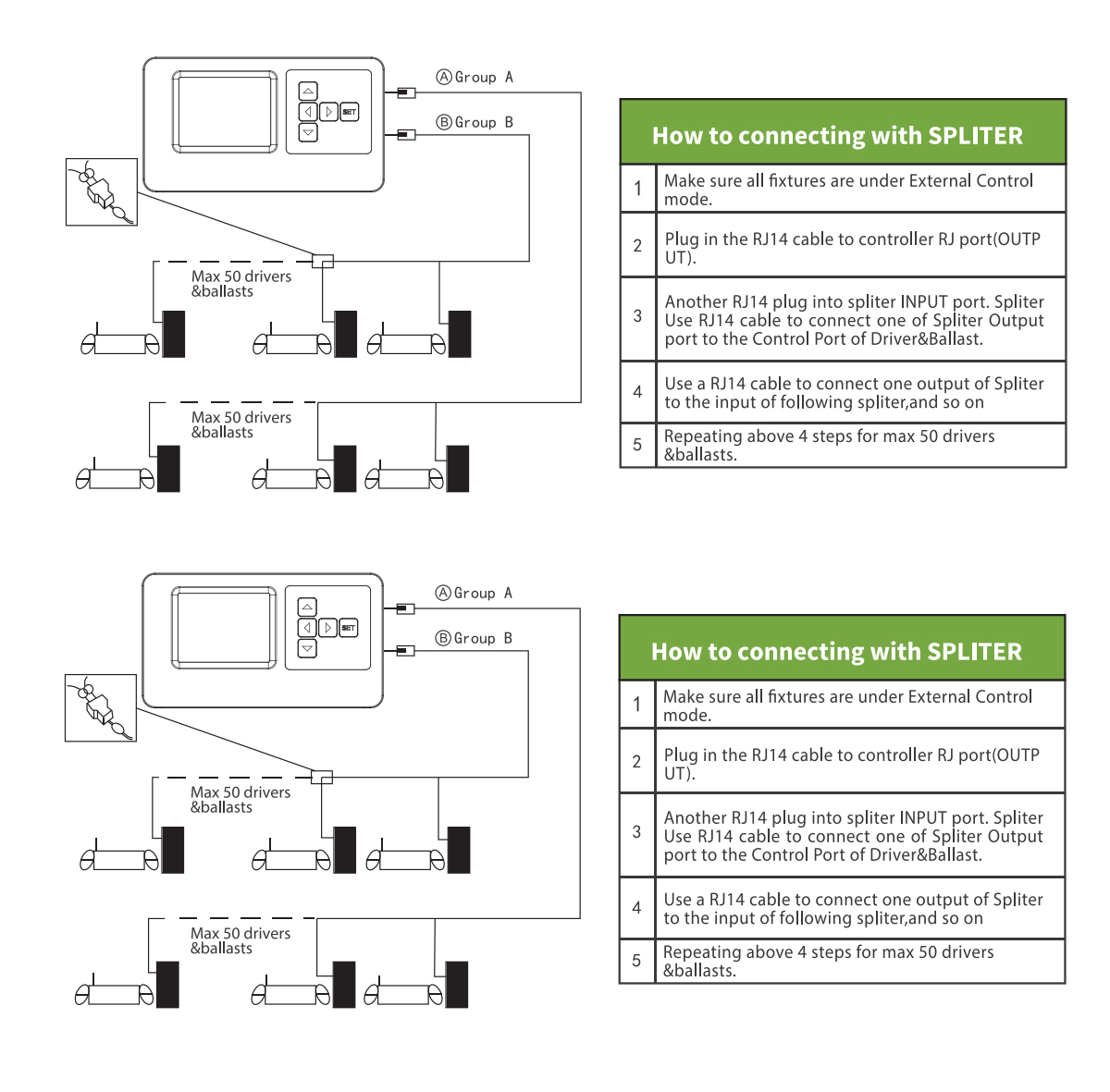

How to connecting with SPLITER：
1.Make sure all fixtures are under External Control mode.
2.Plug in the RJ14 cable to controller RJ port(OUTPUT).
3.Another RJ14 plug into spliter INPUT port. Spliter Use RJ14 cable to connect one of Spliter Output port to the Control Port of Driver&Ballast.
4.Use a RJ14 cable to connect one output of Spliter to the input of following spliter,and so on
5.Repeating above 4 steps for max 50 drivers &ballasts.
