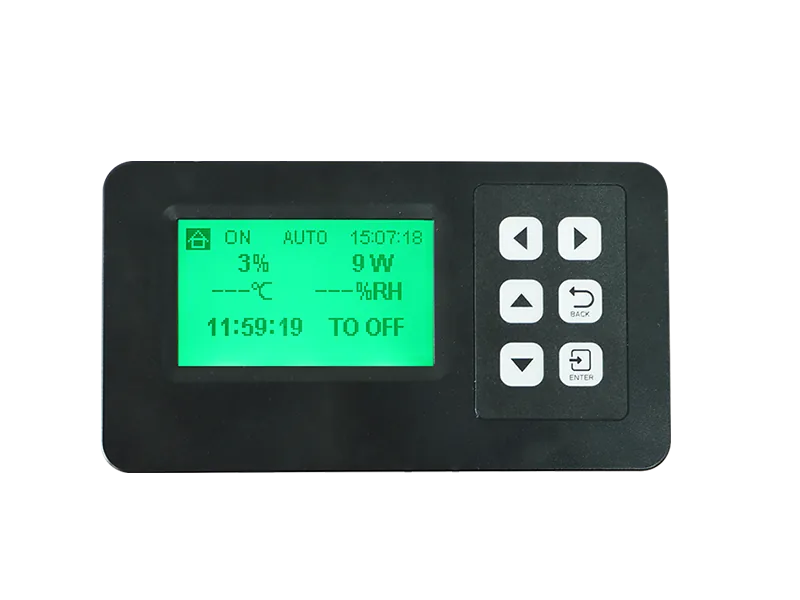

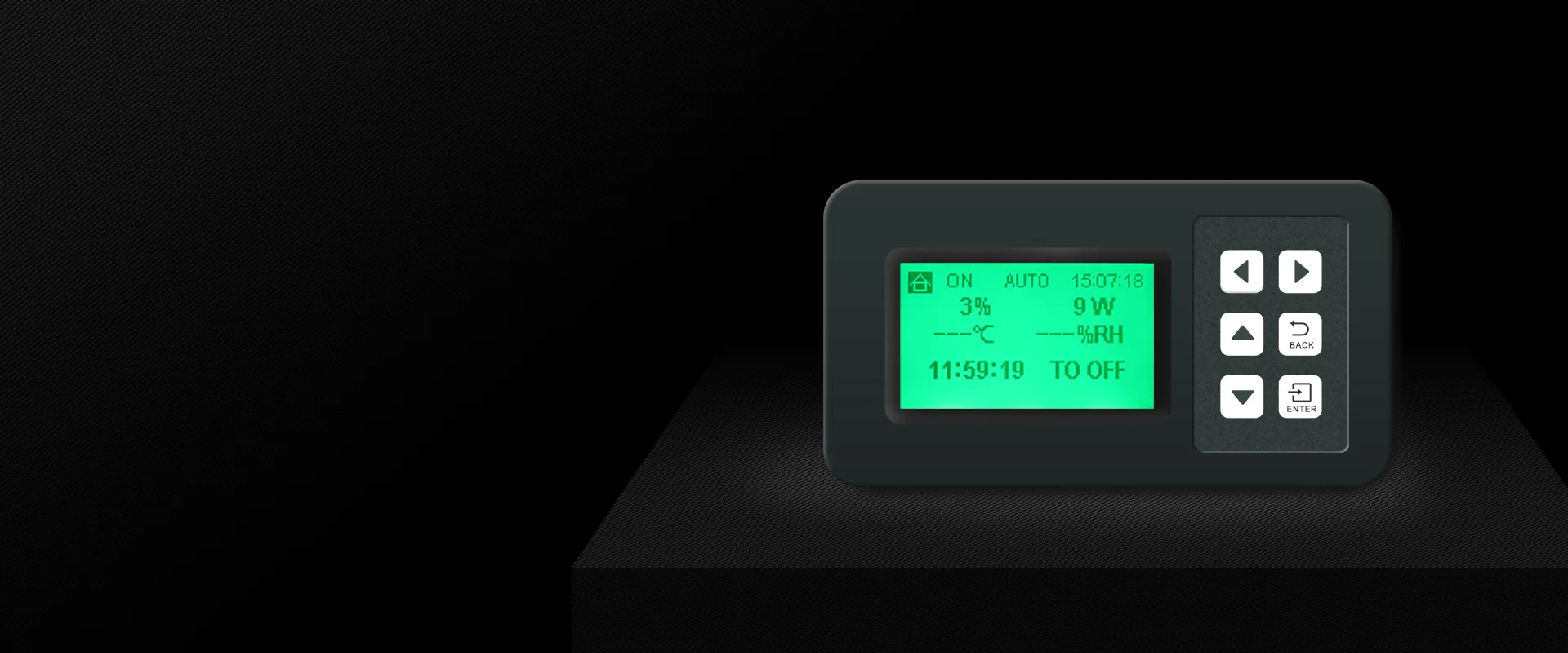

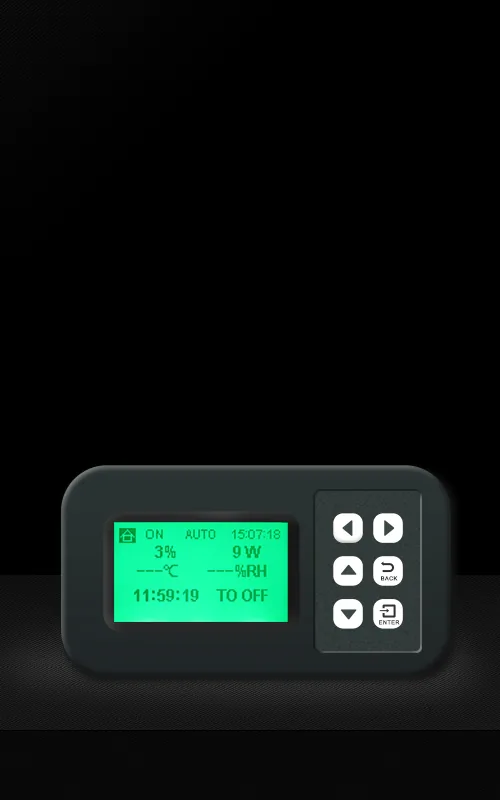

VQ-MV3001 Wired Master Controller
VQ-MV3001 Wired Master Controller is a single-group single-channel wired master controller that realizes wired single-channel control and integrates environmental temperature and humidity monitoring functions to ensure the best growth environment for plants. Its interface design is simple and its operation is clear and intuitive. Combined with preferential prices, indoor growing is more convenient and economical.
Easy operation
simple interface
Environmental monitoring
temperature and humidity
Dimming timing
precise control
Simulate nature
sunrise and sunset
Power adjustment
total value setting
Signal switching
PWM/0-10V
Products Function
Technical Specifications
Product Connection Diagram
Products Function
VQ-MV3001 Wired Master Controller |
| 1. Simple and easy to understand interface, wired control. |
2. With temperature and humidity monitoring function. |
3. Single-group single channel dimming and timing. |
4. Sunrise and sunset settings. |
5. The total dimming power can be set. |
6. Switchable PWM and 0-10V output signal. |
Technical Specifications
Technical Specifications |
Power Input: | 5V/2A |
Output dimming voltage: | 0-10V/50mA |
Working temperature: | 0-40℃ |
Body weight: | 310g |
Body dimensions: | 145x80x28mm |
Single packaging dimensions: | 260*150*110mm |

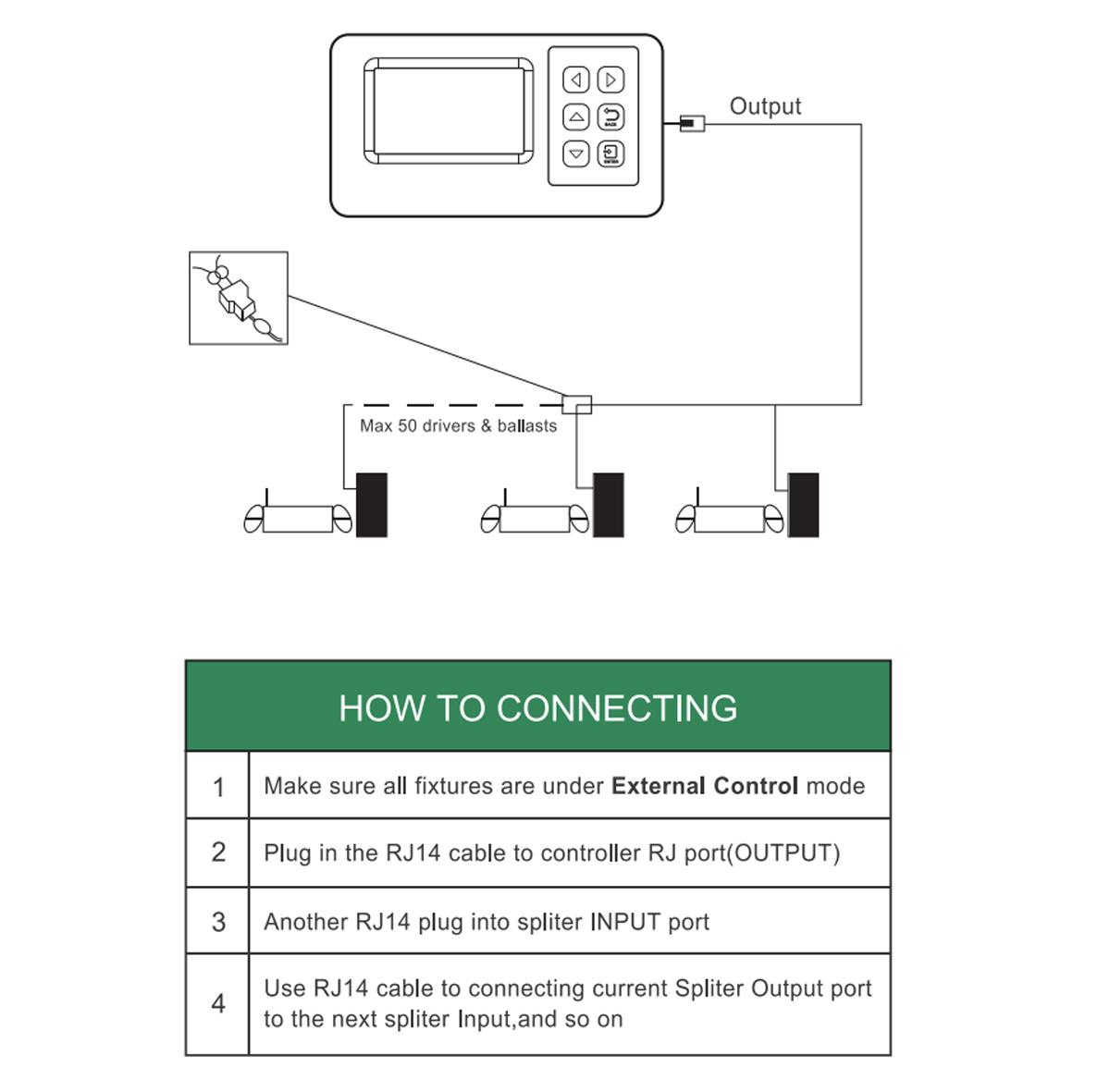

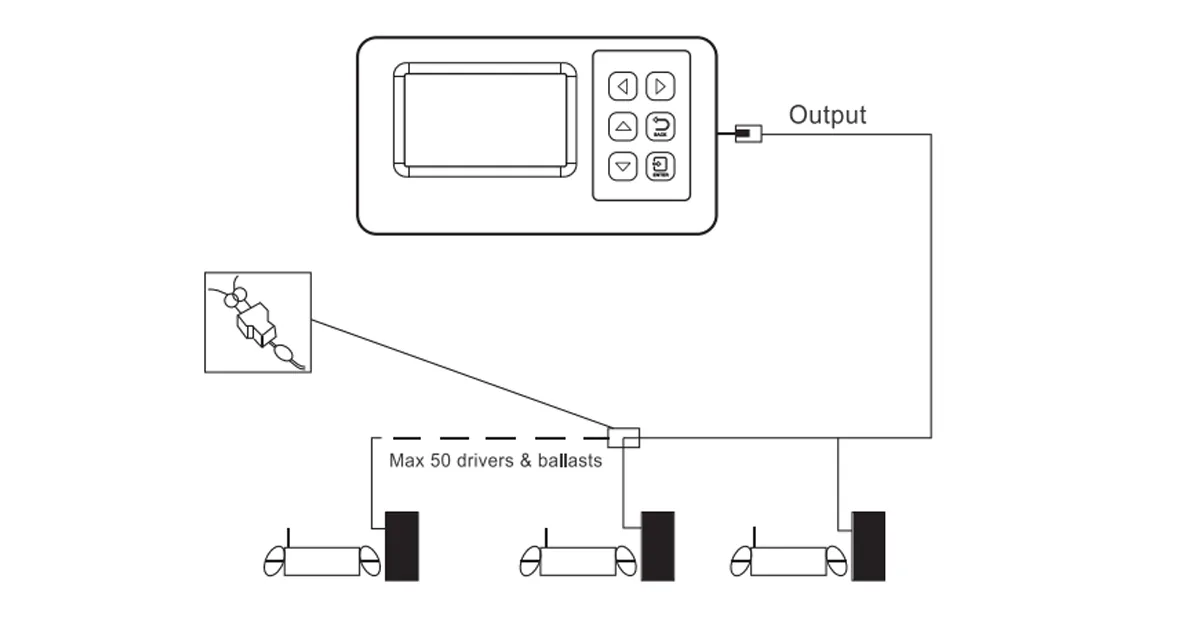

Product Connection Diagram
Product Connection Diagram
HOW TO CONNECTING:
1.Make sure all fixtures are under External Control mode
2.Plug in the RJ14 cable to controller RJ port(OUTPUT)
3.Another RJ14 plug into spliter INPUT port Use RJ14 cable to connecting current Spliter Output port to the next spliter Input,and so on.
.
