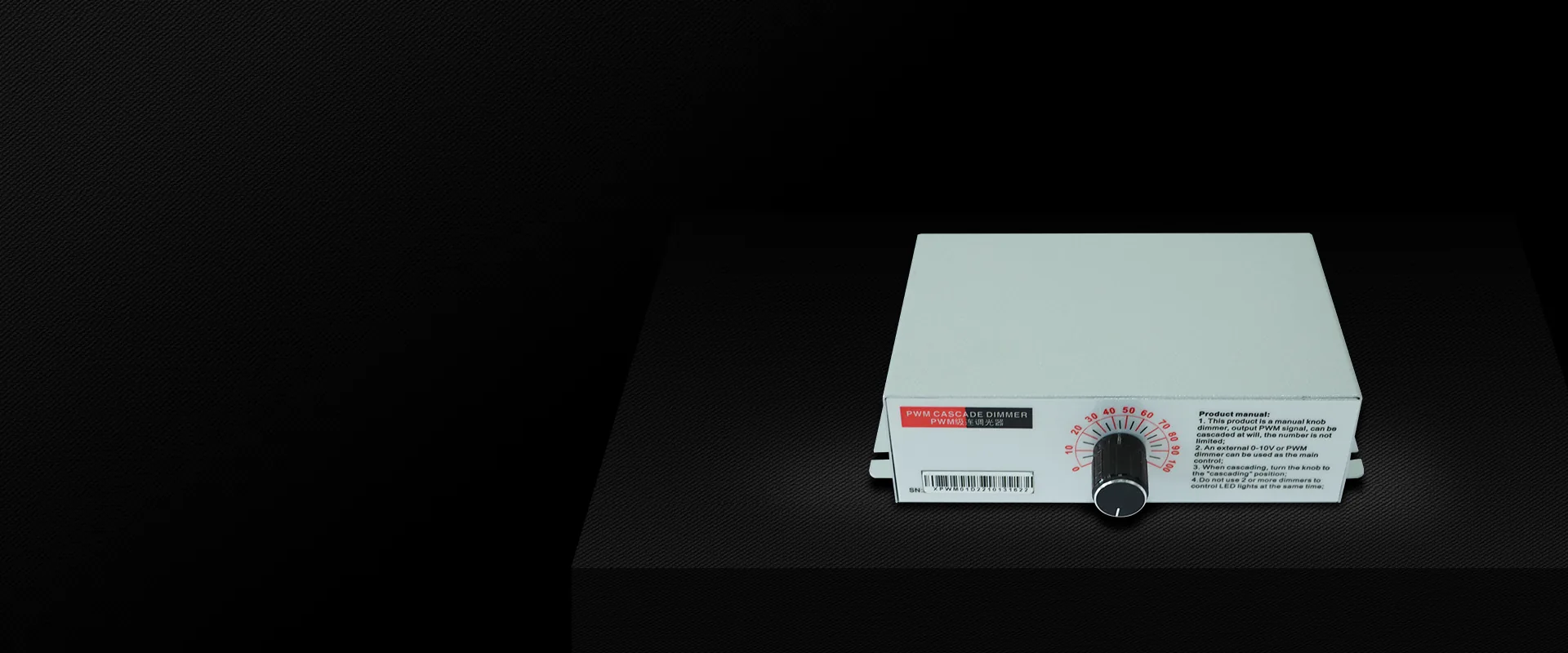

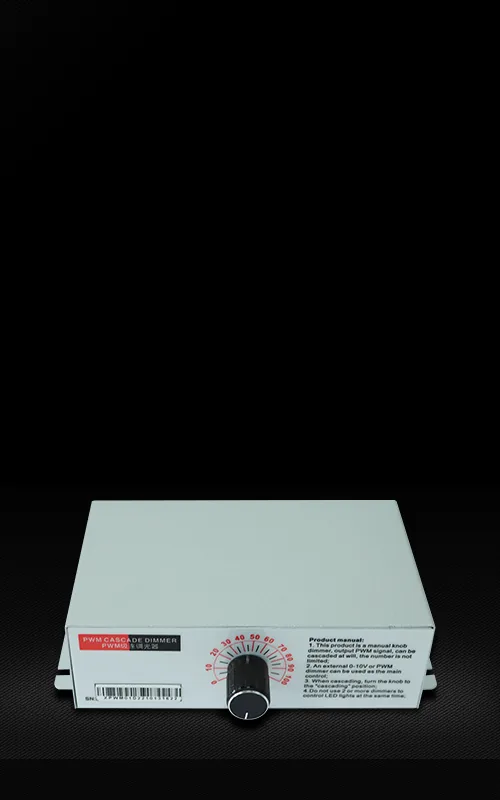

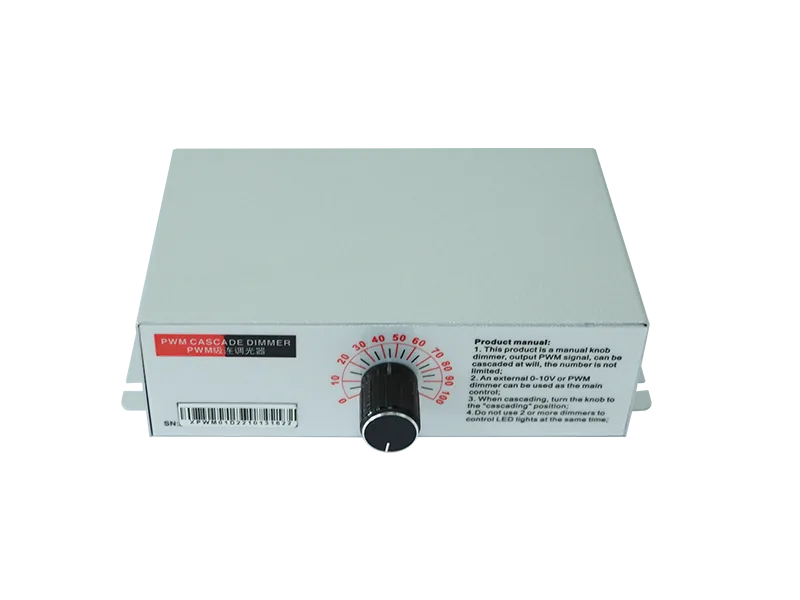

VQ-SV1B1 1-channel dimming slave controller

VQ-SV1B1 Dimming Slave Controller is a single-channel wired knob dimmer that can be used with the host to achieve unlimited cascading. Simple operation and convenient to use.
VQ-SV1B1 1-channel dimming slave controller
VQ-SV1B1 1-channel dimming slave controller

Single-channel dimming

precise lighting

Dimming function

continuous gears

Unlimited cascade

unlimited number

Easy operation

knob operation

Cooperate with the host

work together

Ease of use

easy to get started

Product Details

Products Function
Technical Specifications
Product Connection Diagram
Products Function

VQ-SV1B1 1-channel dimming slave controller

1.PWM dimming: continuous level dimming.

2. Unlimited cascading: Break the limit on the number of connections.

3. Simple operation: turn the knob to control the light easily.


Technical Specifications

Technical Specifications

Input:

12V-200mA DC

Output signal:

PWM

Output channels:

1-4 channels (optional)

Signal output interface:

RJ45+2.54*3

Product dimensions:

122.6mm*77mm*38mm

Number of cascades:

unlimited

Signal input:

0-10V-PWM-resistor

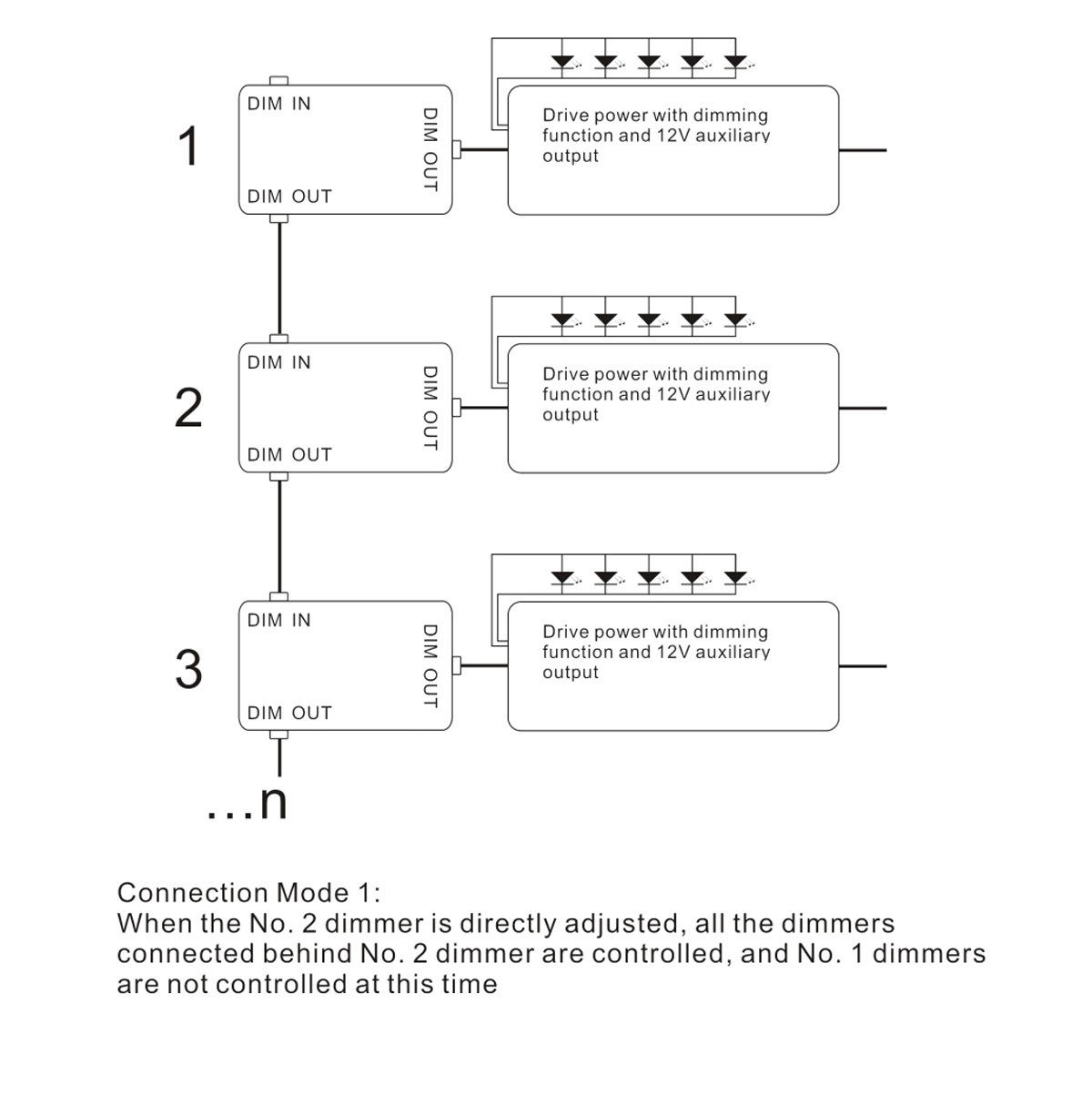

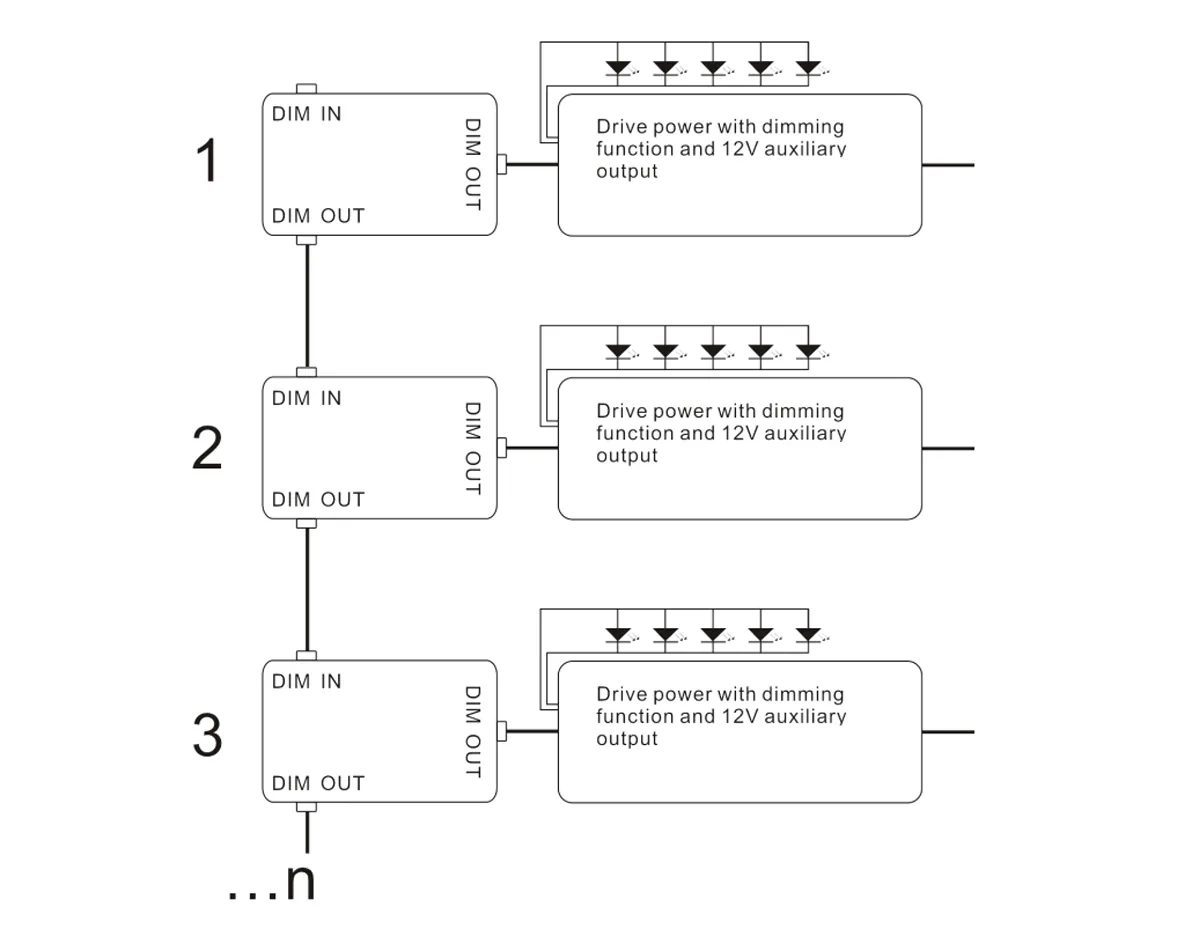

Product Connection Diagram

Product Connection Diagram

Connection Mode :

When the No.2 dimmer is directly adjusted, all the dimmers connected behind No.2 dimmer are controlled, and No.1 dimmers are not controlled at this time
